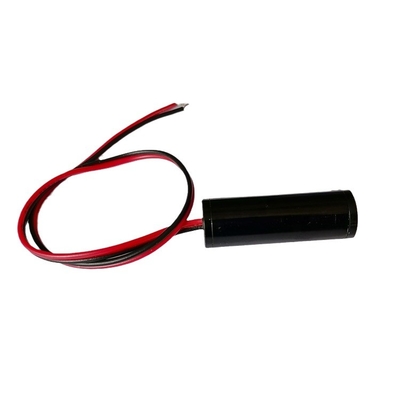

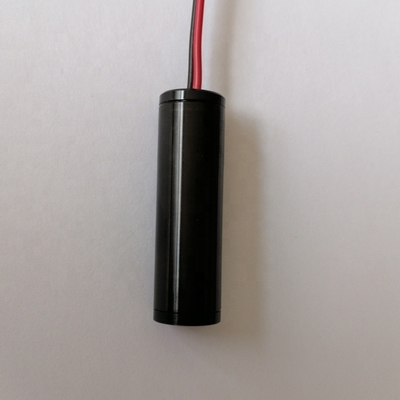

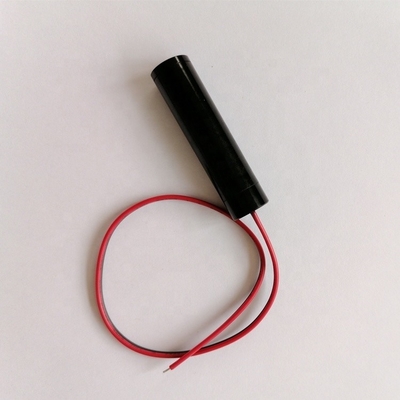

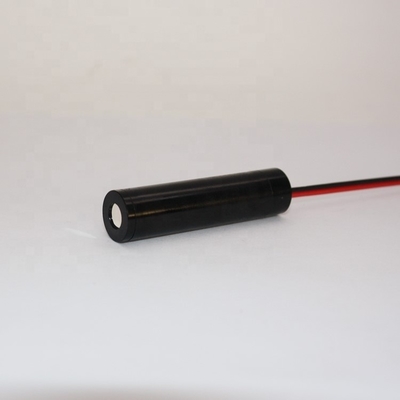

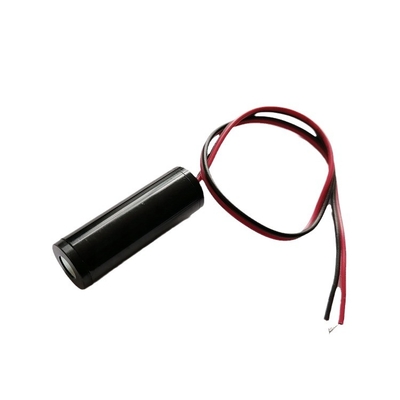

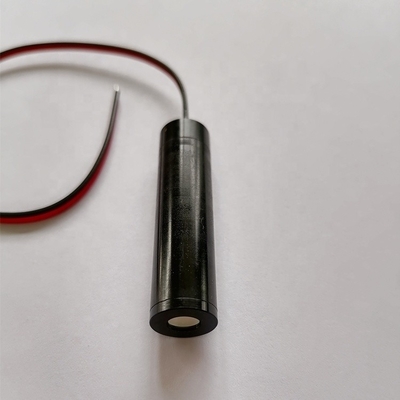

TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW

TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW

Large Image :  TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $105.00/pieces 1-9 pieces
Contact Now

TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG): 0.02 KG Wavelength: 532nm ±2nm Or 545nm±2nm
Output Power For Dot: 1mW, 5mW, 10mW, 20mW Output Power Mode: CW
Beam Divergence: ≤1mrad Beam Mode: TEMoo
Power Type: APC Voltage: 2.8-5.2V
Driver Current At 5V: ≤290mA Module Size: 12x35mm To 12x47.5mm
Operating Temperature: 15 To 50℃

Video Decription
Recommend By Seller
Products Description
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 0



Features：
· DPSS 532nm 545nm Green dot laser module
· Fast Rise Time
· High Reliability
TEMoo
1 to 20mW
Dimensions (Unit: mm)
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 1
Wavelength
532nm/545nm±2nm
Output Power
1-20mW
Operating Case Temperature
-30 to 50℃
Power Stability
±5% at constant temperature
Beam Divergence
Max 1mrad
Dimentions
φ12x35mm for dot, 12x39.5 for line
Beam
dot laser beam or line laser beam
Beam Roudness
70% to 100% for dot
Woking Volatage
2.8 to 5.2V
Working Current
≤ 290mA
Rise Time
< 2 sec.
Lifetime
5000 hours
Rohs3
yes
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 2
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 3
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 4
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+ engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 5
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 6
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 7
System(Controllable for each step)
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 8
Payment & Delivery
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 9

1. Payment:

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 10

2. Package

1) each module in a seperate antistatic bag before packing in carton.
2) each laser is in a safe box before packing in carton.
3)inner foam protection
TEMoo Beam Mode 13mm Diameter 532nm 545nm 555nm Green Yellow Dot Laser Module 5mW 10mW 20mW 11

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
After-sales Service
Lasence Laser modules and Lasers are1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

Kindly be noted the price on the website is just for your reference, please contact us directly for an accurate offer. Mailbox: lara.sui@lasence.com or
