Industry Grade 635nm Wavelength Red Laser Diode Module Dot Laser 3-12V for Industrial

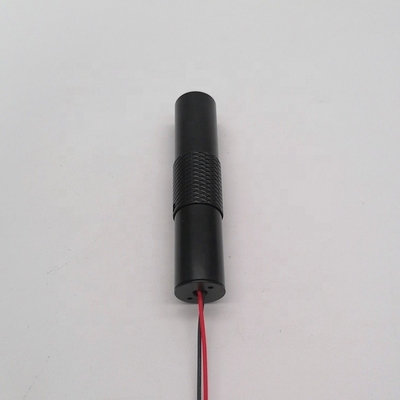

Large Image : Industry Grade 635nm Wavelength Red Laser Diode Module Dot Laser 3-12V for Industrial

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$80.00/pieces 1-99 pieces

Contact Now

Industry Grade 635nm Wavelength Red Laser Diode Module Dot Laser 3-12V for Industrial

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG):	0.01 KG	Wavelength:	635
Output Power:	2-5mW	Output Power Mode:	CW
Beam Divergence:	0.3mrad	Beam Mode Transverse:	TEM00
LD Operating Voltage:	3V-4.5V	LD Operating Current:	40mA
Operating Temperature:	-40 To 50℃	Beam Size At 25m:	5x10mm

Products Description

650nm Red Laser Diode Module 3V Dot Laser Gun Sight Special Accessories

Features：

· Small Size: φ12.7x27.5

· Wide Temperature Range

· Fast Rise Time

· High Reliability

Good beam spot

650nm Red Laser Diode Module 3-12V Dot Laser Gun Sight Special Accessories

Specifications

Wavelength	635nm ± 5nm
Output power	3-5mW
Beam Size at 25m	5x10mm
Beam Divergence ( Full angle, Typ. )	'0.2-0.3mrad
LD Working Voltage	3-4.5V
LD Working Current	~40mA

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
