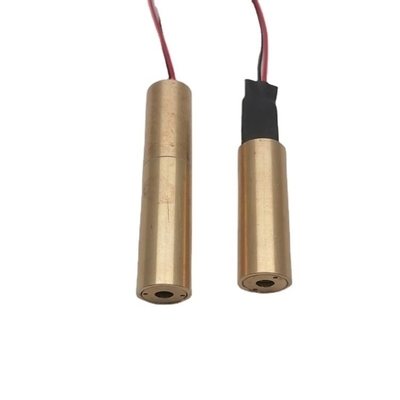

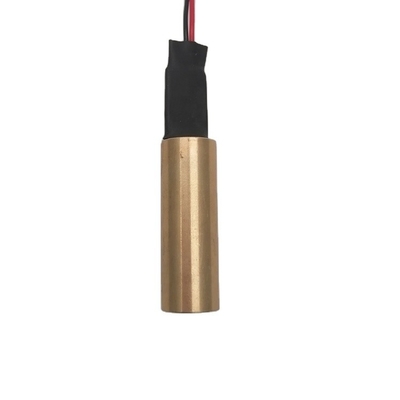

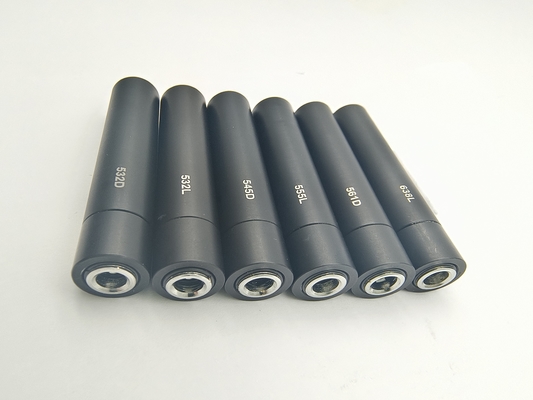

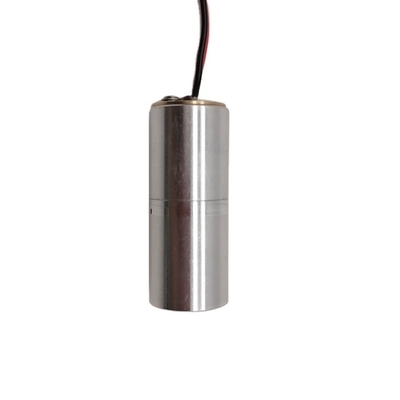

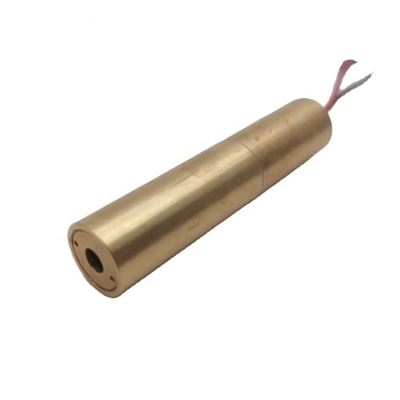

Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW

Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW

Large Image :  Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $149.00/pieces 1-499 pieces
Contact Now

Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG): 0.02 KG Wavelength: 545nm
Output Power: 1mW, 4mW, 10mW, 20mW, 50mW, 100mW Output Power Mode: CW
Beam Divergence: Max 1.0mrad Beam Diameter At Output Window: <2.5mm
Beam Mode Transverse: TEM00 Power Type: APC
Voltage: 2.8-5.2V Operating Temperature: -30 To 50℃
RoHS Compliance Declaration: Yes

Products Description
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW 0



Features：
· Fast Rise Time
· High Reliability
· Isolated Housing
· Wide Temperature Range

Output Power: 1mW to 100mW optional
Wavelength: 532nm, 545nm
Dimensions (Unit: mm)
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW 1
Specifications
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW 2
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW 3
Company Profile
Transverse TEM00 Diode Pumped Solid State Dot Laser Module 1mW 4mW 10mW 20mW 50mW 4
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
