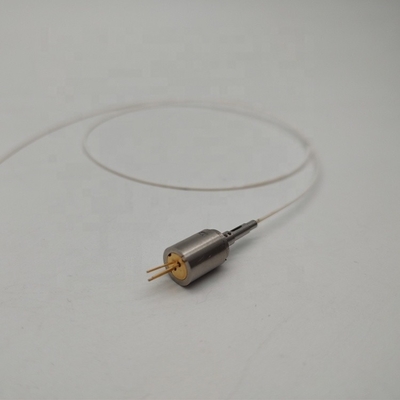

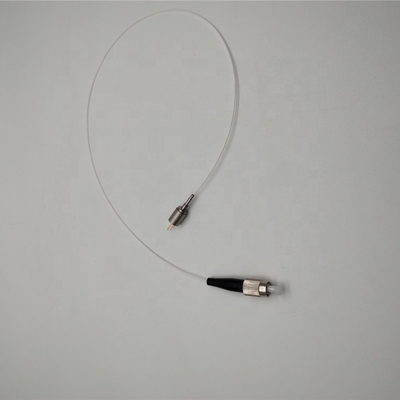

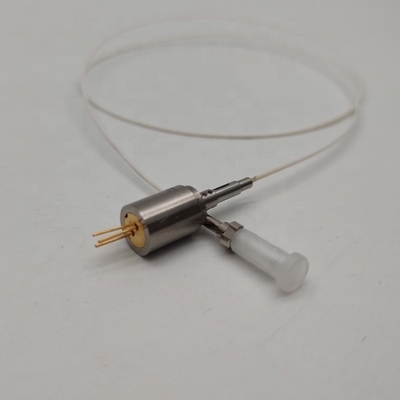

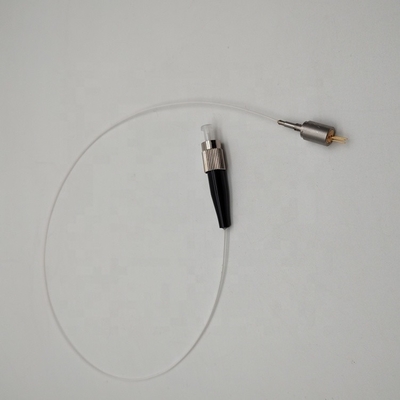

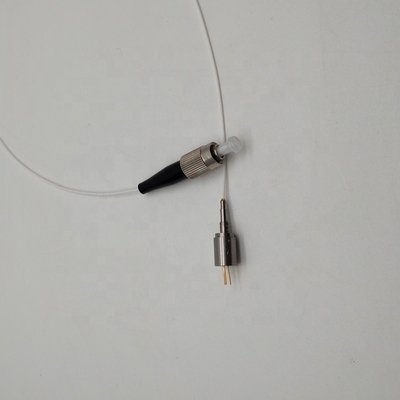

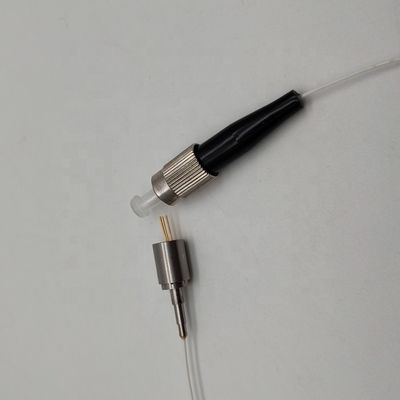

Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type

Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type

Large Image :  Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $220.00/pieces >=1 pieces
Packaging Details: foam carton
Contact Now

Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Building Material Shops, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Industry
Weight (KG): 0.02 KG Wavelength: 405nm 450nm 488nm 505nm 520nm 638nm 660nm Optional
Output Power After Fiber At 25℃: 10-20mW Output Power Mode: CW
Power Stability @25℃ Over 1h: ≤ ±5% Housing Material: SUS304
Fiber: Single Mode PM Fiber Fiber Core Dimater: 3μm/125um With 900um Loose Tube
Fiber Numerical Aperture: 0.12 Operating Voltage: 5V
Operating Current: ≤ 150mA

Video Decription
Recommend By Seller
Products Description
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 0

Single mode fiber coupled laser module 405nm 450nm 488nm 505nm 520nm 638nm 660nm

Features：
·
PM single mode fiber coupled laser module · 638nm Diode Laser · 4.0um PM Fiber · Fast Rise Time · PD is inside
Dimensions (Unit: mm)
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 1
Wavelength
405nm 450nm 488nm 505nm 520nm 638nm 660nm
Output Power
Can be customized from 2mW to 30mW
Operating Case Temperature
-10 to 40℃
Power Stability
±5% at constant temperature @ 25℃
Fiber Parameters
φ3.0μm， 1m length. Numerical Aperture: 0.12 , FC/PC connector or FC/APC(If for others, pls contact with us)
Dimentions
φ8x30mm
Housing Material
Brass
Beam Output Power Mode
SS
Woking Volatage
2.2V
Working Current
≤ 75mA
Storage Temperature
-40-80℃
Lifetime
5000 hours
ROhs
yes
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 2
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 3
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 4
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+ engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 5
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 6
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 7
System(Controllable for each step)
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 8
Payment & Delivery
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 9

1. Payment:

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 10

2. Package

1) each or several modules in a seperate sponge carton before packing in carton.
2) each laser is in a safe box before packing in carton.
3)inner foam protection
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 11

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
After-sales Service
Lasence Laser modules and Lasers are1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

Kindly be noted the price on the website is just for your reference, please contact us directly for an accurate offer. Mailbox: lara.sui@lasence.com or
Blue Green and Red Single Module Fiber Coupled Laser module Spare Parts Type 12
