Max Operating Current 500mA 561nm Yellow Laser Diode DPSS Laser Module for Industrial

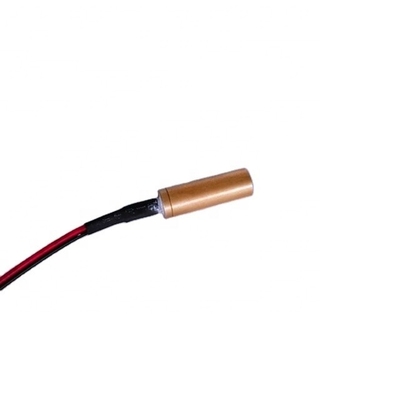

Large Image : Max Operating Current 500mA 561nm Yellow Laser Diode DPSS Laser Module for Industrial

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$200.00/pieces 1-99 pieces

Contact Now

Max Operating Current 500mA 561nm Yellow Laser Diode DPSS Laser Module for Industrial

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.01 KG	Wavelength:	561nm
Output Power:	2-9 MW	Output Power Mode:	PWM
Beam Divergence:	Max 1.5 Mrad	Beam Mode Transverse:	Muti
Voltage:	3V	Max Operating Current:	500mA
Operating Temperature:	10 To 50℃	RoHS Compliance Declaration:	Yes

Products Description

Features：

·Yellow green laser

· Fast rise time

· High Reliability

561nm

2-9mW

10 to 50℃

TEMoo

output:PWM, 50% duty cycle fixed

Dimensions (Unit: mm)

Specifications

Eye visibility

555nm, 545nm, 532nm, 577nm optional.

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
