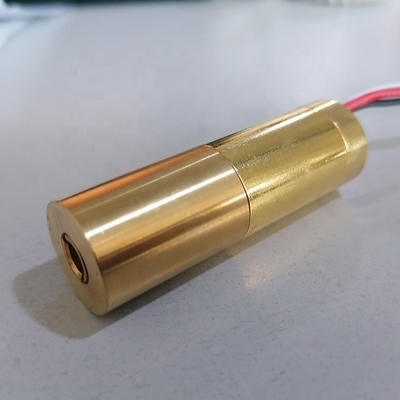

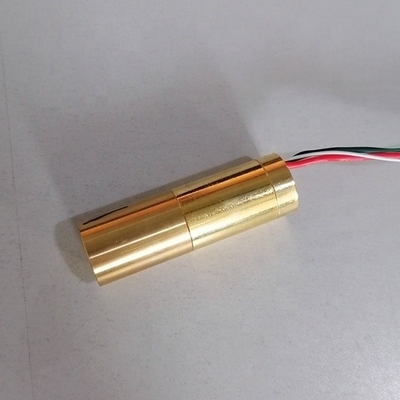

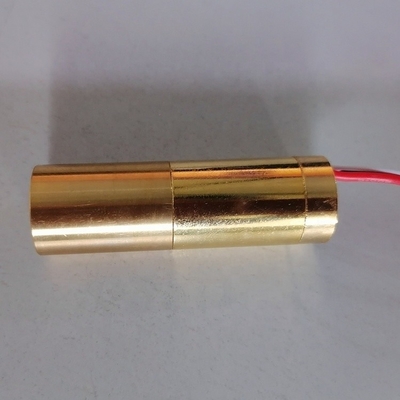

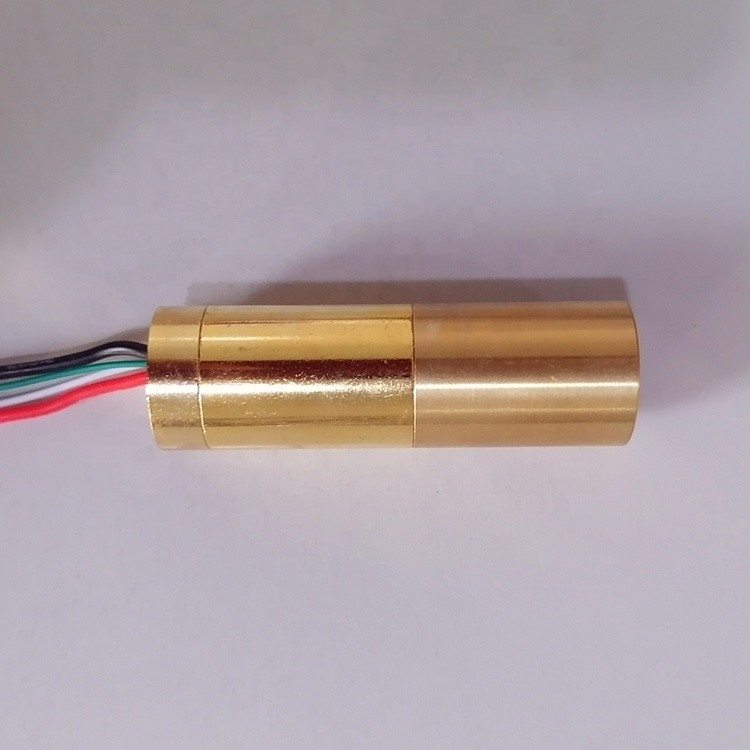

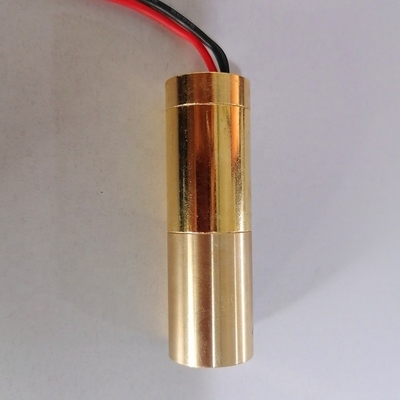

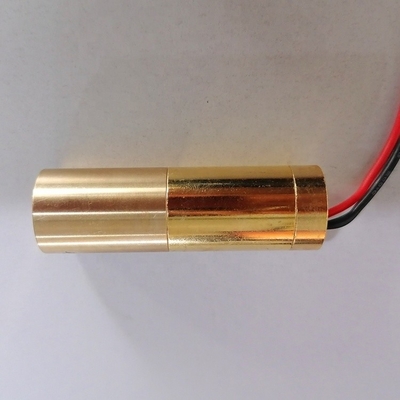

Lasence Industrial Laser Module 545nm DPSS Lasers with Lightweight Design

Large Image : Lasence Industrial Laser Module 545nm DPSS Lasers with Lightweight Design

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$299.00/pieces 1-499 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

Lasence Industrial Laser Module 545nm DPSS Lasers with Lightweight Design

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.2 KG	Wavelength:	545nm
Output Power:	100mW	Output Power Mode:	CW
Beam Divergence:	Max 15mrad	Beam Diameter At Output Window:	0.5mm
Beam Mode Transverse:	Near TEM00	Power Type:	APC
LD Voltage:	1.8-2.3V	Operating Temperature:	24 To 30℃
RoHS Compliance Declaration:	Yes	After Warranty Service:	Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location:	Germany	Port:	Qingdao,China

Products Description

Features：

· DPSS Laser

· 100mW@545nm

· Fast Rise Time

· High Reliability

Dimensions (Unit: mm)

Specifications

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
