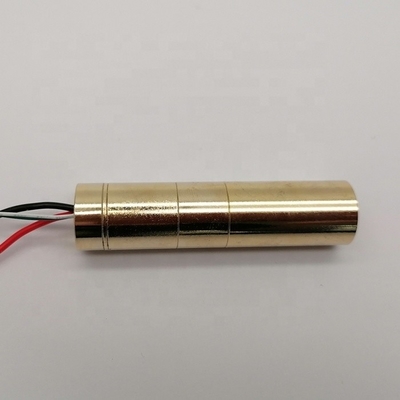

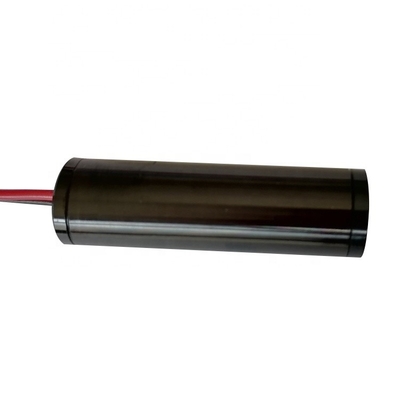

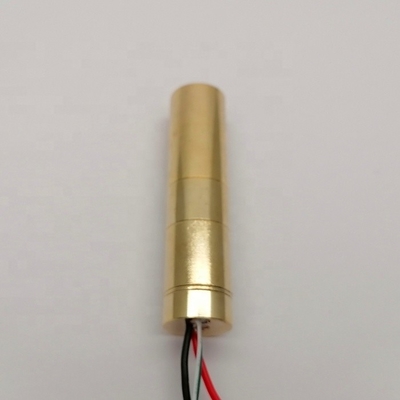

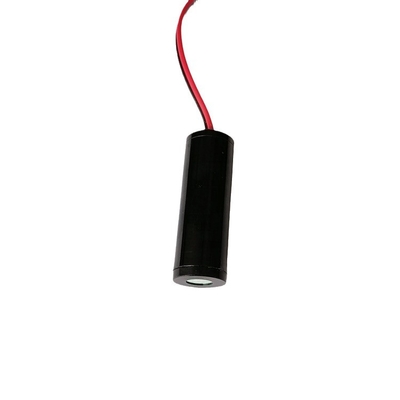

545nm 1mw Green Dot Laser Diode Pumped Solid State Laser Module for Pointing -10 to 40C

Large Image : 545nm 1mw Green Dot Laser Diode Pumped Solid State Laser Module for Pointing -10 to 40C

Product Details:

Place of Origin:	China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$100.00/pieces 1-99 pieces

Contact Now

545nm 1mw Green Dot Laser Diode Pumped Solid State Laser Module for Pointing -10 to 40C

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Building Material Shops, Food & Beverage Factory, Construction Works , Industry
Weight (KG):	0.02 KG	Wavelength:	532nm/545nm ±2nm
Output Power For Dot:	<1mW	Output Power Mode:	CW
Beam Divergence:	≤1.2mrad	Beam Mode:	TEMoo
Power Type:	APC	Voltage:	2.5-3.5V
Driver Current At 3V:	≤300mA	Operating Temperature:	-10 To 40℃
Size:	12x35mm

Products Description

Features：

· DPSS 532nm 545nm

Greent dot laser

· Fast Rise Time

· High Reliability

TEMoo

< 1mW

High Stability

Small beam divergence

Dimensions (Unit: mm)

Wavelength	532nm±2nm, 545nm ±2nm
Output Power for dot	0.4-0.99mW
Operating Case Temperature	-10 to 40℃
~Beam Size at 5m (1/e2)	< 6mm
<Beam Divergence (1/e2)	< 1.2mrad
Woking Volatage	2.5-3.5V
Working Current at 5V	≤ 300mA
Rise Time	< 1sed.

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
