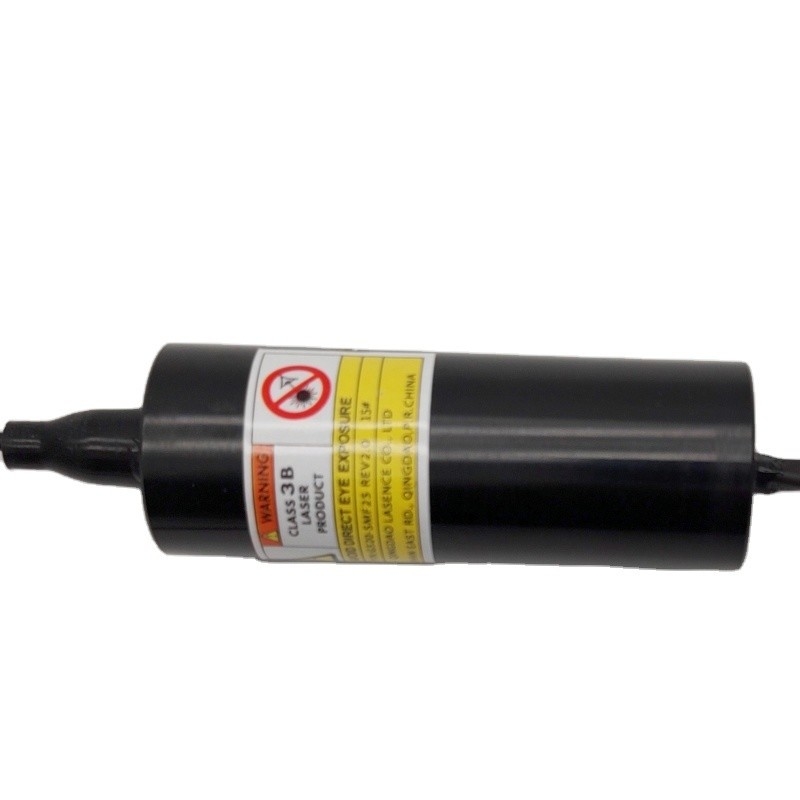

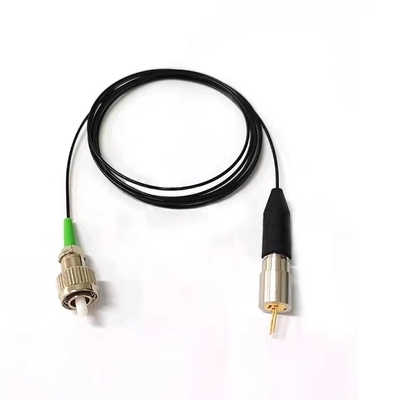

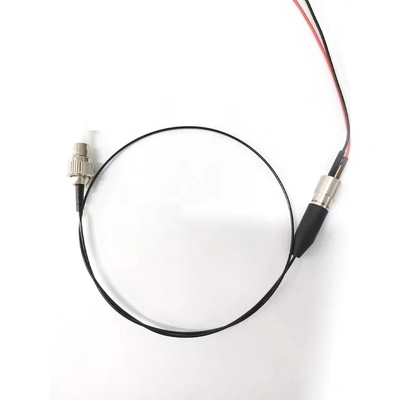

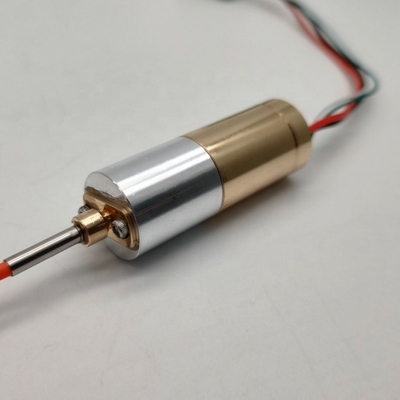

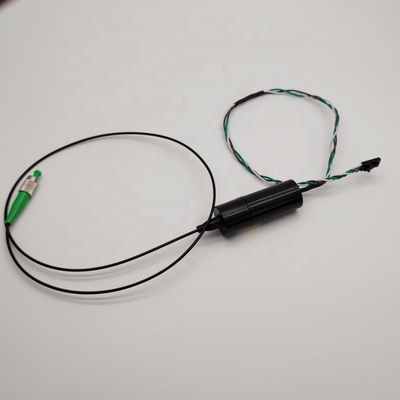

Technology Fiber Coupled Laser Module 1000mW 1500mW for Medical and Biological Devices

Large Image : Technology Fiber Coupled Laser Module 1000mW 1500mW for Medical and Biological Devices

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$3,000.00/pieces >=1 pieces

Contact Now

Technology Fiber Coupled Laser Module 1000mW 1500mW for Medical and Biological Devices

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany, Colombia	Applicable Industries:	Industry
Weight (KG):	0.2 KG	Wavelength:	545nm
Output Power:	1.5W After Fiber	Output Power Mode:	CW
Fiber Type:	200μm	Fiber Numerical Aperture::	0.22
Fiber Length:	1m Or Customized	Fiber Terminal:	ACC
LD Voltage:	1.8-2.3V	Operating Temperature:	25-30℃
RoHS Compliance Declaration:	Yes

Products Description

1.5W industrial DPSS high power laser with fiber output

Features：

· DPSS Laser

· 1500mW after fiber@545nm

20x55mm

Any others can be customized

· Fast Rise Time

· High Reliability

Please contact us for detailed datasheet.

Dimensions (Unit: mm)

Specifications

Laser Head Diameter: 20mm

Length (mm): ≤55

Weight (g): ≤200

Housing Material Brass with gold-plating

Wavelength (nm): 545nm±2nm
Output Power after fiber (mW) : ≥1500

Power Stability at const. Temperature: +/- 2% OR +/- 5%

Output Power Mode:CW

Laser Class:4
Fiber Type: 200um with 3mm loose tube
Fiber Numerical Aperture: 0.22
Fiber Length (m): 1
Fiber Termination: SMA905(2) Power Type:ACC LD Voltage (DC, V) ：2.6V LD Operating Current (mA) at 2.6V：≤10,000 Wire Length
(mm)：200 (+/-50) Wire Type：20AWG / 28AWG Lifetime (hours)≥5,000 RoHS Compliance Declaration ：Yes

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
