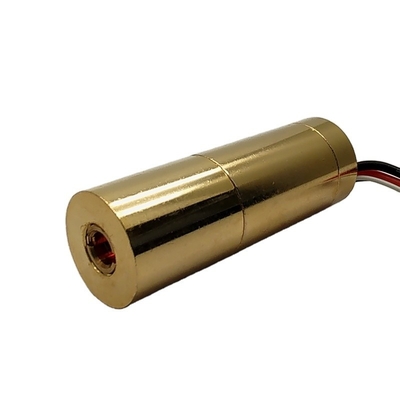

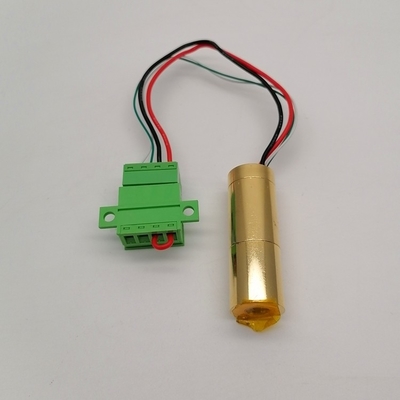

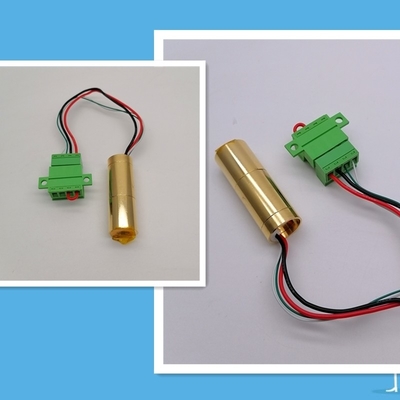

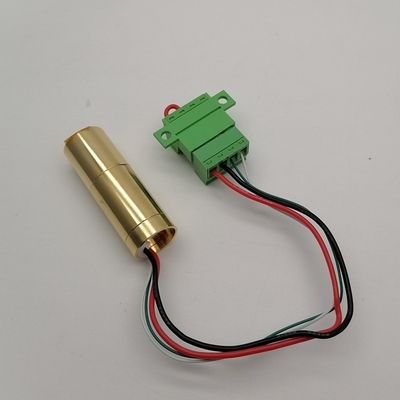

Beam Divergence Max 30mrad 555nm Yellow DPSS Laser Module with LD Voltage 1.8-2.3V 1W

Large Image : Beam Divergence Max 30mrad 555nm Yellow DPSS Laser Module with LD Voltage 1.8-2.3V 1W

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$2,099.00/pieces 1-9 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

Beam Divergence Max 30mrad 555nm Yellow DPSS Laser Module with LD Voltage 1.8-2.3V 1W

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany, Colombia	Applicable Industries:	Industry
Weight (KG):	0.2 KG	Wavelength:	555nm
Output Power:	500mW	Output Power Mode:	CW
Beam Divergence:	Max 30mrad	Beam Diameter At Output Window:	0.5mm
Beam Mode Transverse:	Muti-mode	Power Type:	APC
LD Voltage:	1.8-2.3V	Operating Temperature:	25-30℃
RoHS Compliance Declaration:	Yes	Port:	Qingdao,China

Products Description

Features：

· DPSS Laser

· 500mW@555nm

· Wide Temperature Range

· Fast Rise Time

· High Reliability

The below datasheet is for 200mW, it can be up to 500mW LASER MODULE at 555nm, and can be 1000mW at 545nm.

Dimensions (Unit: mm)

Specifications

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
