High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power

High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power

Large Image :  High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $500.00/pieces 1-19 pieces
Contact Now

High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG): 0.06 KG Wavelength: 520nm ±5nm
Output Power After Fiber At 25℃: 25-30mW Output Power Mode: CW
Spectral Width(FWHM): Max.2nm Power Stability At 25℃: ±5%
Fiber: Single Mode Fiber Fiber Core Dimater: 3.5μm
Fiber Numerical Aperture: 0.22 Operating Voltage: 5V
Operating Current: ≤ 600mA

Video Decription
Recommend By Seller
Products Description
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 0

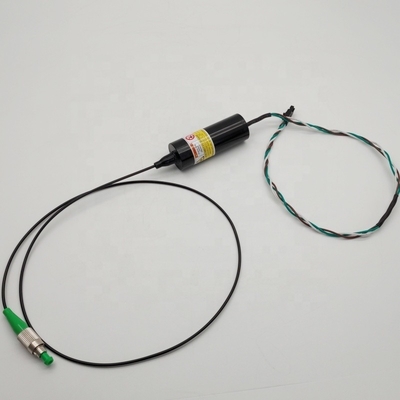

520nm 30mw single mode fiber coupling diode laser module with FC/APC connector
Features：
·
single mode fiber coupled laser module · 520nm Diode Laser · 3.5um Single Mode Fiber · Fast Rise Time · PWM or CW optional
Parameters (Unit: mm)
Wavelength
520nm±5nm
Output Power
25-30mW after fiber at 25℃
Operating Case Temperature
-10 to 60℃
Power Stability
＜±10% at constant temperature @ 25℃
Fiber Parameters
3.5/125um with 2000um loose tube,  600mm length, with FC/APC connector
Dimentions
φ22x78mm
Housing Material
Black Anodized Aluminum
Beam Output Power Mode
CW
Woking Volatage
5V
Working Current
≤ 600mA
Storage Temperature
-40-85℃
Lifetime
2000 hours
ROHS
yes
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 1
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 2
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 3
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 4
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+ engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 5
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 6
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 7
System(Controllable for each step)
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 8
Payment & Delivery
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 9

1. Payment:

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 10

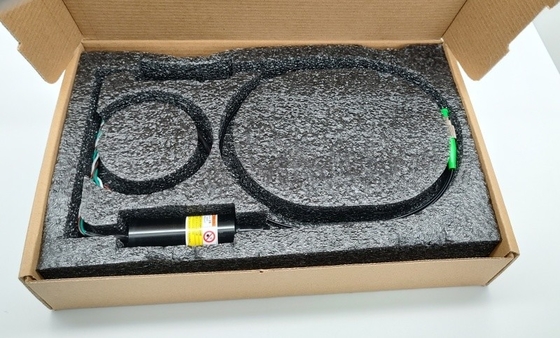

2. Package

1) each or several modules in a seperate sponge carton before packing in carton.
2) each laser is in a safe box before packing in carton.
3)inner foam protection
High Stability 520nm ±5nm Fiber Coupled Green Laser Module with 25-30mW CW Output Power 11

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
After-sales Service
Lasence Laser modules and Lasers are1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

Kindly be noted the price on the website is just for your reference, please contact us directly for an accurate offer. Mailbox: lara.sui@lasence.com or
