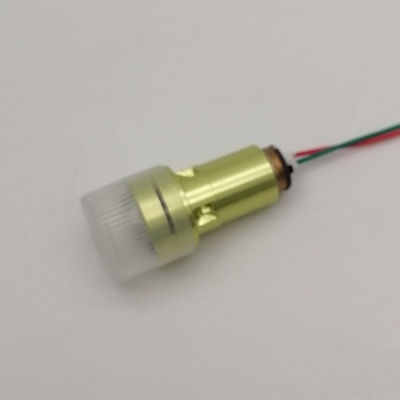

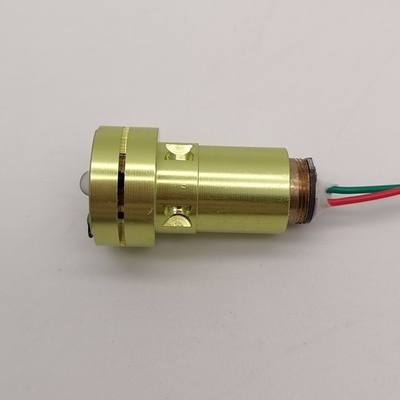

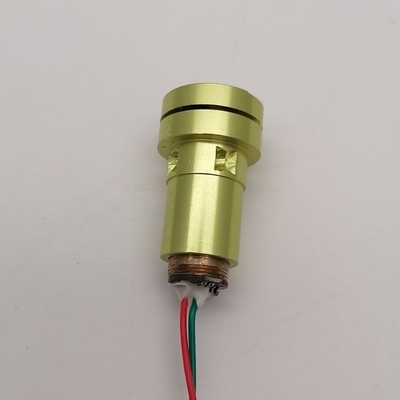

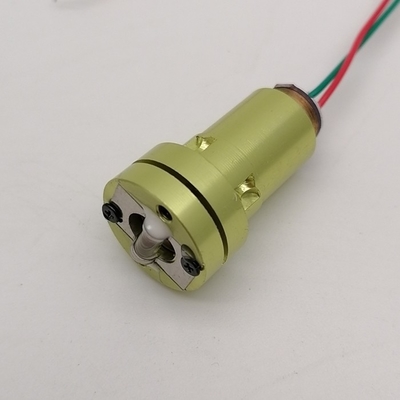

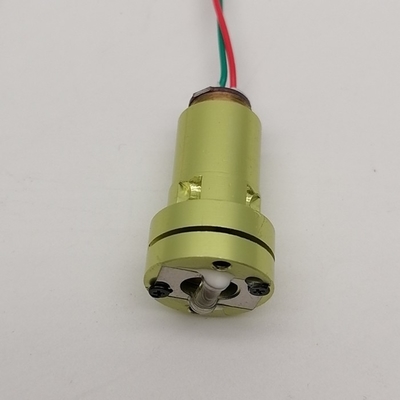

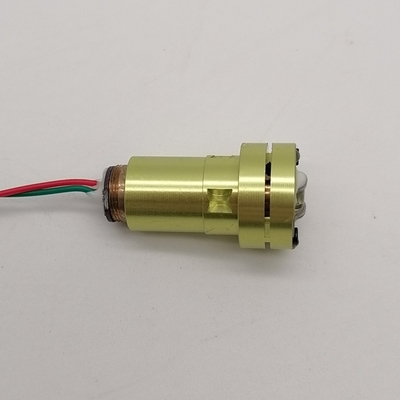

5mW 555nm Green Laser Line Module for Safety Alignment within Wide Temperature Range

Large Image : 5mW 555nm Green Laser Line Module for Safety Alignment within Wide Temperature Range

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$26.00/pieces 10-99 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

5mW 555nm Green Laser Line Module for Safety Alignment within Wide Temperature Range

Description

Condition:	New	Warranty:	1 Year, 1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.01 KG	Wavelength:	555nm±4nm
Output Power:	≥ 15mW	Output Power Mode:	CW Or Pulsed
Fan Angle:	~ 120°	Linewidth @ 7m:	Max 4mm
Voltage:	2.6-3.0V	Max Operating Current:	430mA
Operating Temperature:	-10 To 50℃	Storage Temperature:	-40 To 60℃
Port:	Qingdao

Products Description

High visibility laser module 555nm

Features：

·Yellow green laser

· Fast rise time

· High Reliability

· Gaussian Line

· Wide Temperature Range

Dimensions (Unit: mm)

Specifications

wavelength	550-555nm
line power	5mW around
housing	yellow anodized aluminum
output mode	pulsed or CW
power type	ACC, TTL(Pulsed 50% duty cycle , 110Hz)
voltage	3V

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
