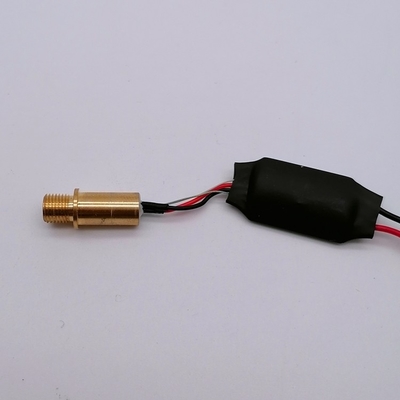

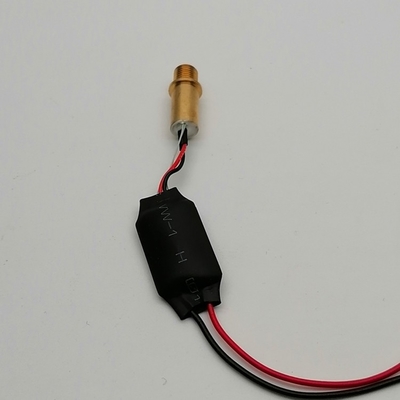

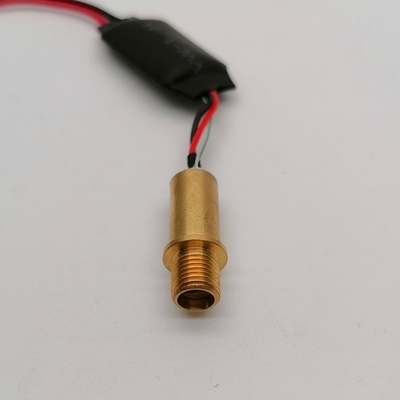

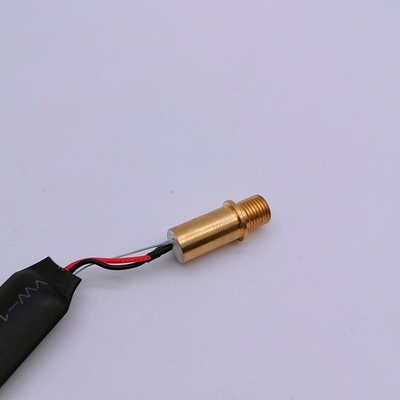

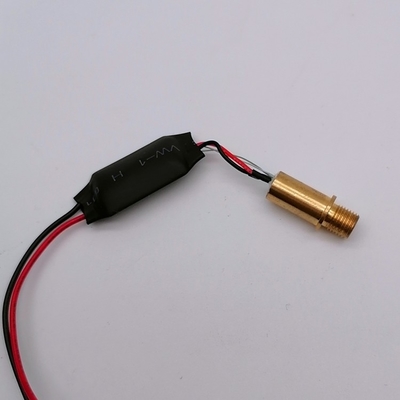

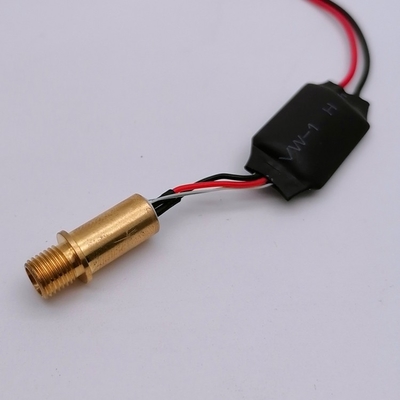

545nm APC Power Type 9.5mm Mini Green Laser Diode DPSS Module for Aiming and Pointing

Large Image : 545nm APC Power Type 9.5mm Mini Green Laser Diode DPSS Module for Aiming and Pointing

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$45.00/pieces 1-9 pieces
Packaging Details:	ESD Plastic bag, outside with carton package.
Supply Ability:	1000 Piece/Pieces per Day

Contact Now

545nm APC Power Type 9.5mm Mini Green Laser Diode DPSS Module for Aiming and Pointing

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.01 KG	Wavelength:	545nm
Output Power:	1-5mW	Output Power Mode:	CW
Beam Divergence:	1.5 Mrad	Beam Mode Transverse:	TEMoo
Power Type:	APC	Voltage:	3.5 To 5.5V
Operating Current:	< 300mA	Operating Temperature:	-15 To 50℃
Port:	Qingdao,China

Products Description

Features：

· Small Size: Dia9.5x22mm

· Wide Temperature Range

· Fast Rise Time

· High Reliability

With screw

Specifications

Working Environment

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
