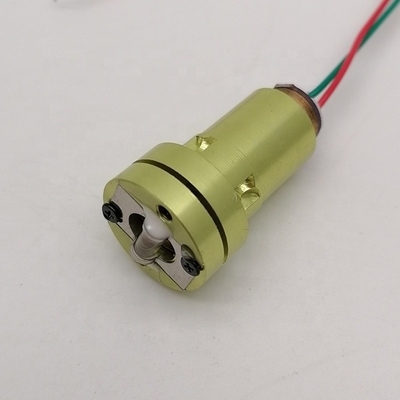

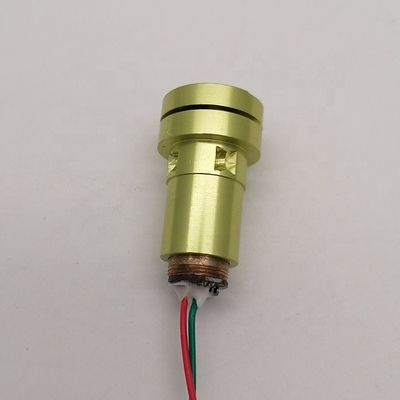

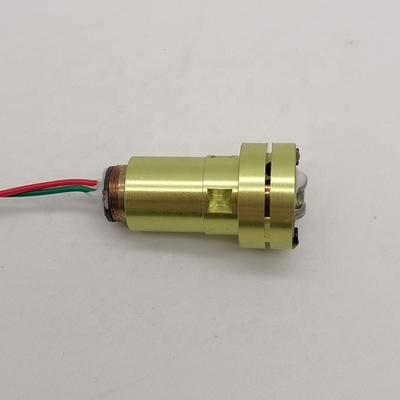

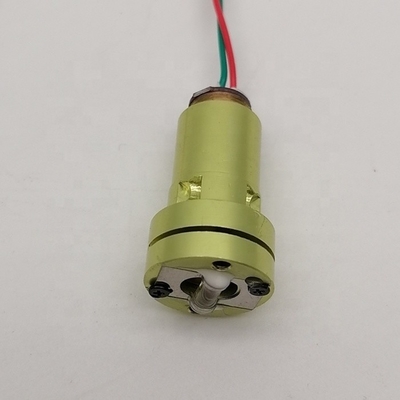

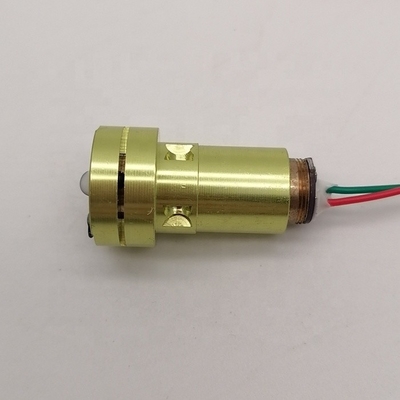

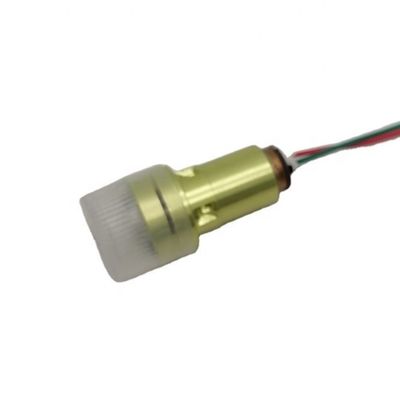

Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW

Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW

Large Image :  Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW

Product Details:
Place of Origin: Shandong, China
Brand Name: Lasence
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $26.00/pieces >=10 pieces
Packaging Details: ESD Plastic bag, outside with carton package
Supply Ability: 5000 Piece/Pieces per Day
Contact Now

Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW

Description
Condition: New Warranty: 1 Year
Spare Parts Type: Laser Module Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product
Key Selling Points: High Stability, Focus Adjustable, Little Beam Spot Showroom Location: Germany
Applicable Industries: Retail, Other, Industry Weight (KG): 0.1 KG
Wavelength: 555nm±5nm Output Power Before Adding Cylinder Lens: 1mW, 6mW And 18mW (optional)
Output Power Mode: Pulse Fan Angle: 120°
Linewidth At 7m: Min.2-3 Mm And 4mm For 18mW Line Curvature At 10m: ±1mm
Power Type: ACC/ Duty Cycle-50% Operating Voltage: 2.6-3V
Operating Current: Peak: Max.500mW, Average: 430mA Module Size: 17x35mm

Video Decription
Recommend By Seller
Products Description
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 0


high visibility 555nm line laser module
Features：
· DPSS Laser
· Various Wavelength : 530nm, 545nm, 555nm,
· Fast Rise Time
· High Reliability
·Wide Temperature Range
·100% eye visibility at 555nm




Specifications
Dimensions (Unit: mm)
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 1
Wavelength
532nm, 545nm, 555nm
Output Power
Can be customized from 1mW to 18mW (dot in center of the line or without- optional)
Line width at 10m
max. 5mm/ min.2-3mm
Deviation of Laser Beam at 10m
max.2mm
Power Type
Input: ACC, duty cycle 50% fixed; Output: pulsed
Operating voltage
2.6-3V DC
Operating current
Peak: max.500mW  Average: Max.430mA

Spectral Width
±1nm
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 2
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 3
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 4
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products.
The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years.
Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module,
as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and
wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of
biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+
engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you
want to achieve, and Lasence will help you get there.
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 5
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 6
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 7
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 8
System(Controllable for each step)
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 9
Payment & Delivery
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 10

1. Payment

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.


Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 11

2. Package

1) each module in a seperate antistatic bag before packing in carton.
2) each laser is in a safe box before packing in carton.
Red Green Laser Diode Module Line Dot Cross with 2-3mm Linewidth at 7m and 4mm at 18mW 12

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport.
Or Shipping by DHL/FedEx/UPS/TNT to your door.
If you have any requests in package and shipping , please contact us directly
After-sales Service
Lasence Laser modules and lasers are 1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

All price one the webise is just a referecen, please contact us for an accurate offer, thank you.
