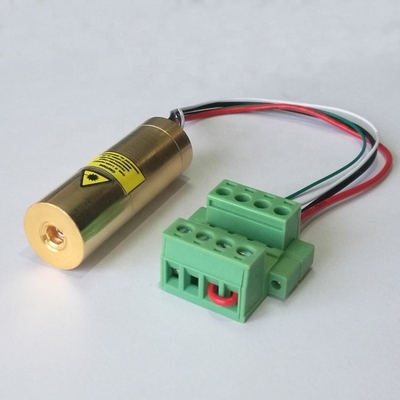

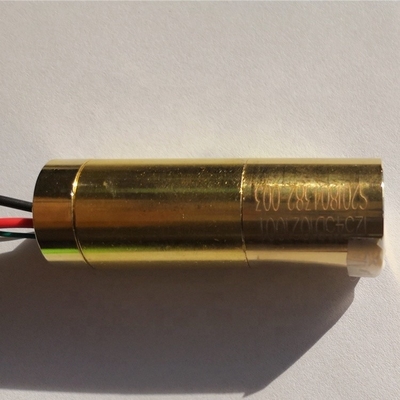

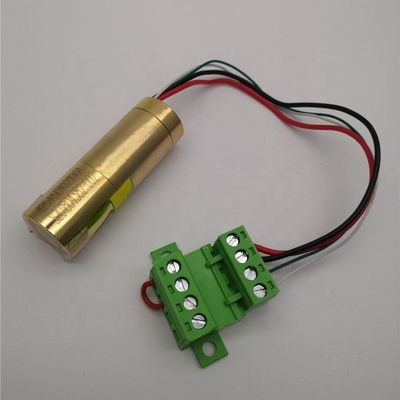

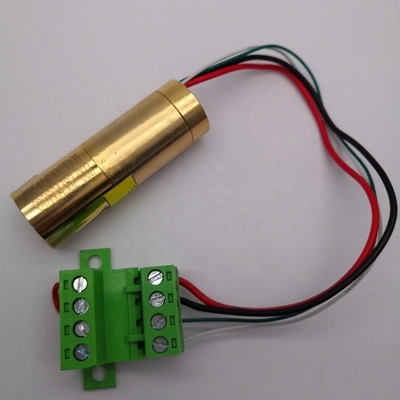

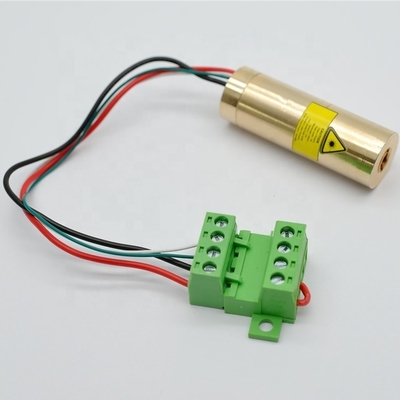

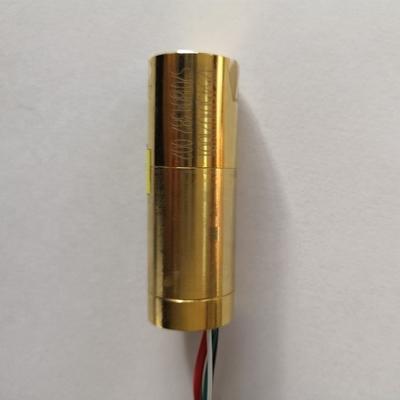

High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm

High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm

Large Image :  High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm

Product Details:
Place of Origin: Shandong, China
Brand Name: Lasence
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $3,000.00/pieces >=10 pieces
Packaging Details: ESD Plastic bag, outside with carton package
Supply Ability: 2000 Piece/Pieces per Month
Contact Now

High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Focus Adjustable, Little Beam Spot
Showroom Location: Germany Applicable Industries: Retail, Other, Industry
Weight (KG): 0.1 KG Wavelength: 555nm±1nm
Output Power: ≥500mW Output Power Mode: CW
Beam Divergence: 20mrad-40mrad Beam Diameter At Focus Position: ~0.3mm
Beam Mode: Multi Power Type: ACC
LD Voltage: 1.8-2.3V LD Current: < 1100mA
Laser Module Length: 18x55mm

Video Decription
Recommend By Seller
Products Description
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 0


555nm green diode pump solid state laser module 500mW with compact size 18x55mm
Features：
· DPSS Laser
· Various Wavelength 520nm, 530nm, 545nm, 555nm,561nm and 577nm
· Fast Rise Time
· High Reliability


Specifications
Dimensions (Unit: mm)
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 1
Wavelength
532nm, 545nm, 555nm, 561nm, 577nm
Output Power
532nm, 545nm: 50mW, 200mW, 500mW, 1W
555nm: 50mW, 200mW, 500mW, 1W
561nm: 50mW and 200mW
577nm:50mW
Beam Divergrence
max 40mrad, typ: 20mrad
Beam Diameter at output window
~ 0.5mm
Power Type
ACC
LD operating voltage
1.8-2.3V DC
LD operating current
2000 to 100000A based on differernt output power

Spectral Width
±1nm
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 2
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 3
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products.
The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years.
Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module,
as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and
wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of
biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+
engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you
want to achieve, and Lasence will help you get there.
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 4
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 5
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 6
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 7
System(Controllable for each step)
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 8
Payment & Delivery
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 9

1. Payment

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.


High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 10

2. Package

1) each module in a seperate antistatic bag before packing in carton.
2) each laser is in a safe box before packing in carton.
High Power 500mW Green Diode Pump Solid State Laser Module with Compact Size 18x55mm 11

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport.
Or Shipping by DHL/FedEx/UPS/TNT to your door.
If you have any requests in package and shipping , please contact us directly
After-sales Service
Lasence Laser modules and lasers are 1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

All price one the webise is just a referecen, please contact us for an accurate offer, thank you.
