Retail 20mW CW 545nm Green Gaussian Line Laser Module for Wide Temperature Range

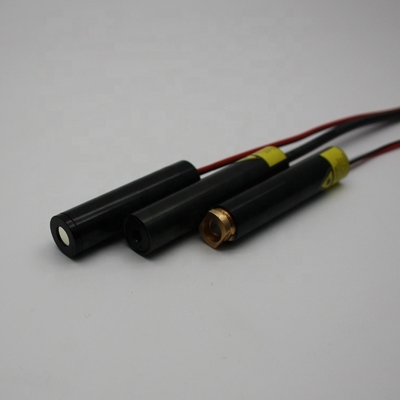

Large Image : Retail 20mW CW 545nm Green Gaussian Line Laser Module for Wide Temperature Range

Product Details:

Place of Origin:	China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$155.00/pieces 1-99 pieces

Contact Now

Retail 20mW CW 545nm Green Gaussian Line Laser Module for Wide Temperature Range

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Building Material Shops, Manufacturing Plant, Retail, Industry
Weight (KG):	0.02 KG	Wavelength:	545nm
Output Power:	1-20mW Optional	Output Power Mode:	CW
Fan Angle::	10 / 15 / 20 / 30 / 45 / 60 / 75 / 90 / 120°- Optional	Linewidth At 10m:	< 4.5mm
Line Curvature (mm) At 10m:	±0.5	Power Type:	APC
Voltage:	2.8-5.2V	Operating Temperature:	-30 To 50℃
RoHS Compliance Declaration:	Yes

Products Description

Features

· Gaussian Line

· Wide Temperature Range

· Fast Rise Time

· High Reliability

Line width@working distance can be customized.

Dimensions (Unit: mm)

Specifications

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
