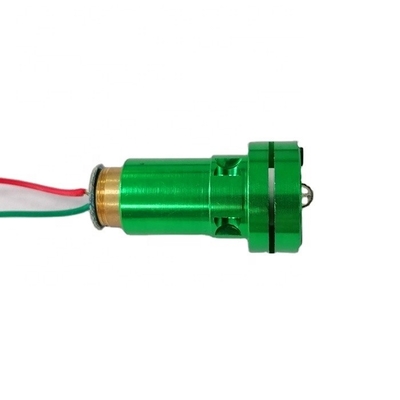

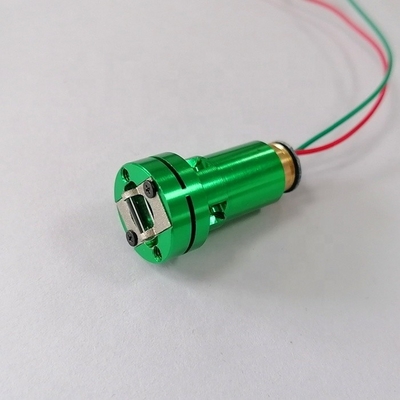

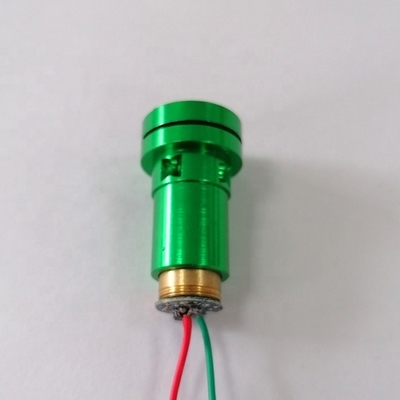

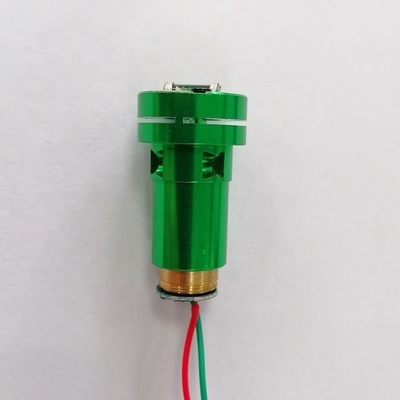

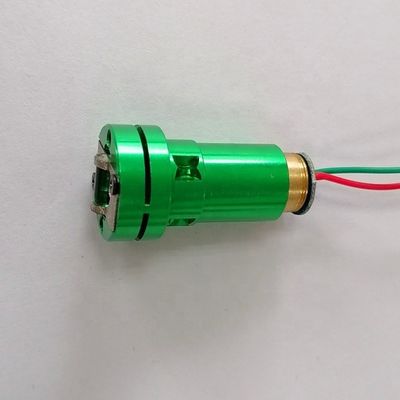

2.6-3.0V Voltage Line Green Laser Module 532nm with 5-18mW Output Power

Large Image : 2.6-3.0V Voltage Line Green Laser Module 532nm with 5-18mW Output Power

Product Details:

Place of Origin:	China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$15.00/pieces 1-99 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

2.6-3.0V Voltage Line Green Laser Module 532nm with 5-18mW Output Power

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Building Material Shops, Food & Beverage Factory, Construction Works , Industry
Weight (KG):	0.02 KG	Wavelength:	532nm ±2nm
Output Power For Dot:	5-18mW	Output Power Mode:	CW
Fan Angle:	~120°	Linewidth At 7m:	4mm
Line Curvature (mm) At 10m:	±0.5mm	Power Type:	ACC
Voltage:	2.6-3.0V	Current:	380mA
Operating Temperature:	-10 To 50℃

Products Description

Features：

· Gaussian Line

· Wide Temperature Range

· Fast Rise Time

· High Reliability

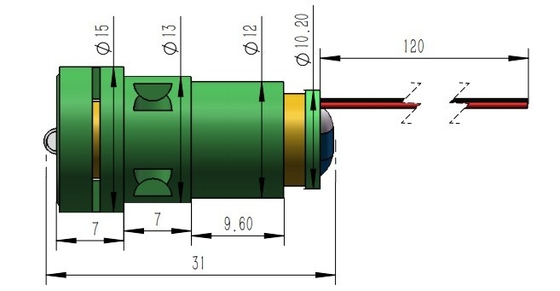

Dimensions (Unit: mm)

Wavelength	532nm±2nm
Output Power for dot	7-18mW
Operating Case Temperature	-10 to 50℃
Power Stability	±33%
Line Width at 7m	Max 4mm
Woking Volatage	ACC-CW
Working Current	≤ 450mA
line straigtness at 10m	Max ±0.5mm

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
