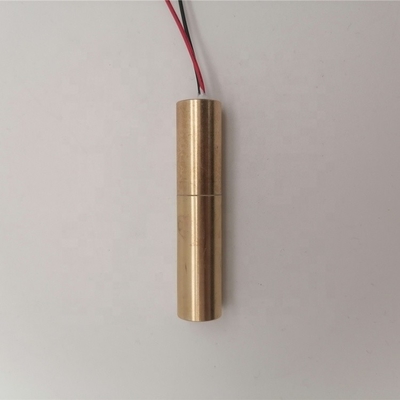

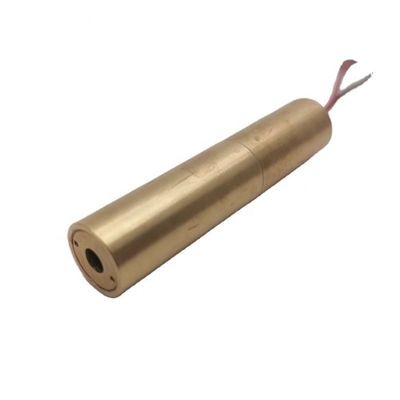

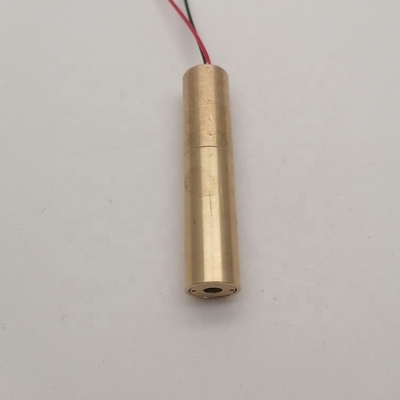

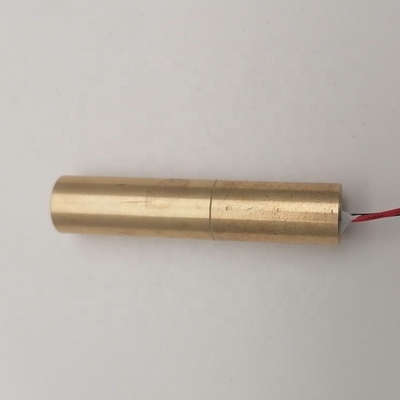

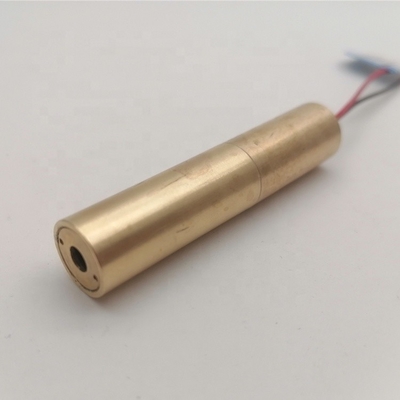

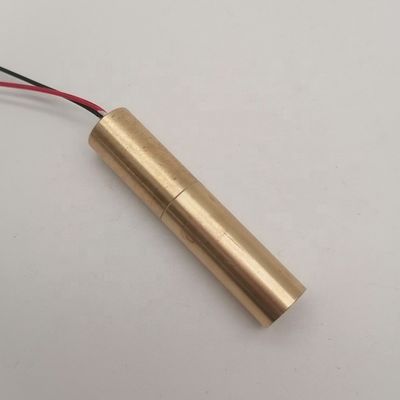

Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type

Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type

Large Image :  Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $75.00/pieces >=10 pieces
Contact Now

Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Building Material Shops, Food & Beverage Factory, Construction Works , Industry
Weight (KG): 0.02 KG Wavelength: 532nm/545nm ±2nm
Output Power For Dot: <1mW Output Power Mode: CW
Beam Divergence: ≤1.2mrad Beam Mode: TEMoo
Power Type: APC Voltage: 2.5-3.5V
Driver Current At 3V: ≤300mA Operating Temperature: -10 To 40℃
Size: 12x56mm

Products Description
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 0



Features：
· DPSS 532nm 545nm
Greent dot laser
· Fast Rise Time
· High Reliability
TEMoo
< 1mW
High Stability
Small beam divergence
Dimensions (Unit: mm)
Wavelength
532nm±2nm, 545nm ±2nm
Output Power for dot
0.4-0.99mW
Operating Case Temperature
-10 to 40℃
~Beam Size at 5m  (1/e2)
< 6mm
<Beam Divergence (1/e2)
< 1.2mrad
Woking Volatage
2.5-3.5V
Working Current at 5V
≤ 300mA
Rise Time
< 1sed.
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 1
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 2
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 3
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 4
Company Profile
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 5
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 6
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 7
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 8
Certifications
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 9
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 10
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 11
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 12
Exhibition
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 13
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 14
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 15
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 16
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 17
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 18
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 19
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 20
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 21
Working Environment
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 22
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 23
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 24
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 25
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 26
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 27
Payment & Delivery
Dot Laser 1mW APC DPSS Laser Module with PCB Inside Housing Green Spare Parts Type 28
