1.8-2.3V High Stability 1.2W 555nm DPSS Green Laser for Lab and Scientific Study

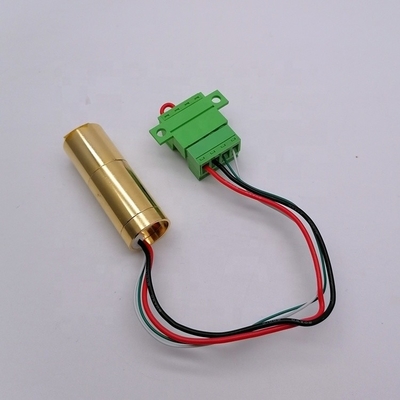

Large Image : 1.8-2.3V High Stability 1.2W 555nm DPSS Green Laser for Lab and Scientific Study

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$5,499.00/pieces >=1 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

1.8-2.3V High Stability 1.2W 555nm DPSS Green Laser for Lab and Scientific Study

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany, Colombia	Applicable Industries:	Industry
Weight (KG):	0.2 KG	Wavelength:	555nm
Output Power:	1.2W	Output Power Mode:	CW
Beam Divergence:	Max 60mrad	Beam Diameter At Output Window:	0.8mm
Beam Mode Transverse:	Muti-mode	LD Power Type:	ACC
LD Voltage:	1.8-2.3V	Operating Temperature:	25-30℃
RoHS Compliance Declaration:	Yes

Products Description

Features：

· DPSS Laser

· 500mW@555nm,18x55mm

1200mW@555nm, 20x55mm

· Wide Temperature Range

· Fast Rise Time

· High Reliability

OUTPUT POWER of LASER MODULE: it can be up to 1200mW at 555nm and can be 1800mW at 545nm.

Please contact us for detailed datasheet.

Dimensions (Unit: mm)

Specifications

Laser Head Diameter: 20mm Length (mm): ≤55 Weight (g): ≤200 Housing Material Brass with gold-plating Wavelength (nm): 555nm±1nm Output Power (mW) : ~1200 Power Stability at const. Temperature: +/- 2% OR +/- 5% Output Power Mode:CW Laser Class:4 Beam Divergence (mrad) :≤60 Beam Alignment Tolerance Position (Δr, mm):≤0.5 Off-axis Angle (mrad): ≤60 Beam Diameter at Output Window (mm): ~0.8 Beam Mode Longitude: Multi Beam Mode Transverse: TEM10 Polarization Ratio (Linear): ≥100:1 M²: 50 Residual IR:≤1% Power Type:ACC LD Voltage (DC, V) ：2V LD Operating Current (mA) at 2V：≤10,000 Wire Length (mm)：200 (+/-50) Wire Type：20AWG / 28AWG Lifetime (hours) (MTTF at T(4))≥5,000 RoHS Compliance Declaration ：Yes

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser modules, line laser modules and ring laser modules, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
