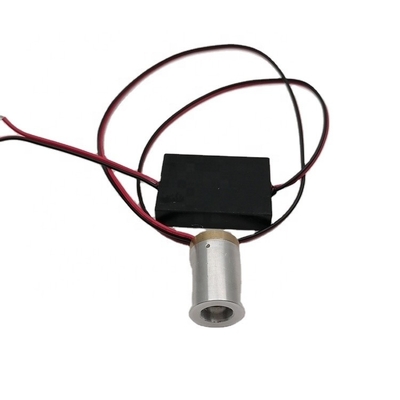

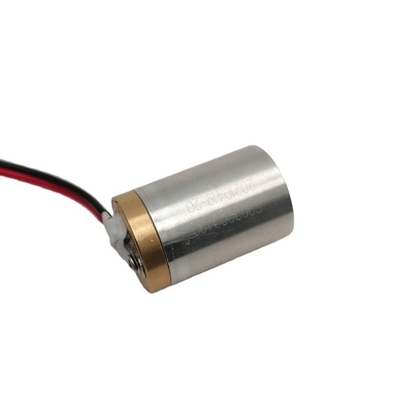

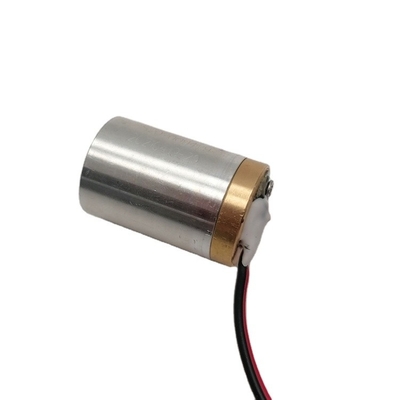

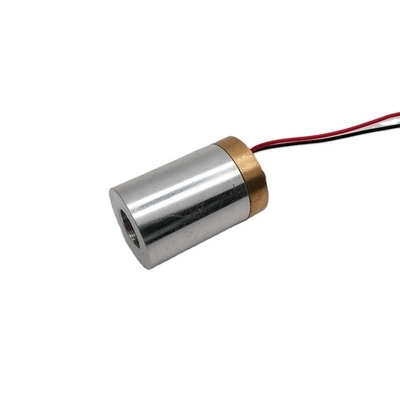

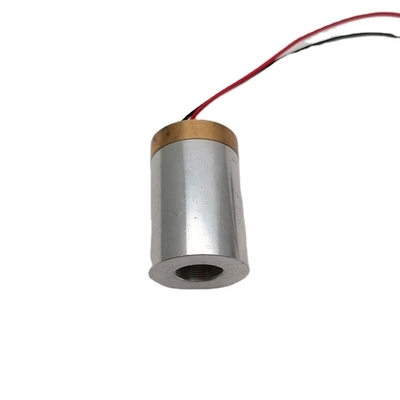

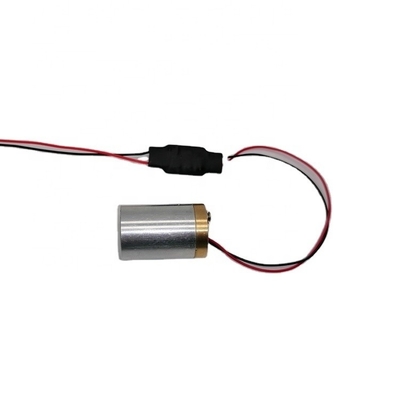

Good Beam High Stability DPSS 577nm 571nm Laser 800mW to 1W for Biological Detection

Large Image : Good Beam High Stability DPSS 577nm 571nm Laser 800mW to 1W for Biological Detection

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$8,000.00/pieces 1-9 pieces

Contact Now

Good Beam High Stability DPSS 577nm 571nm Laser 800mW to 1W for Biological Detection

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG):	0.2 KG	Wavelength:	577nm±7nm
Output Power:	≥80mW	Output Power Mode:	CW
Beam Divergence:	≤ 50mrad	Beam Diameter At Output Window:	0.5mm
Beam Mode Transverse:	Multi	Power Type:	ACC
LD Voltage And Current:	2V , 1.2A	Operating Temperature:	25℃-30℃
RoHS Compliance Declaration:	Yes

Products Description

Features：

· DPSS Laser

·≥800 Yellow Laser

571nm±2nm

· Fast Rise Time

· High Reliability

Specifications

571 Yellow Laser Module for medical, biological detection, science etc.

Specifications
Model Number :Y571D1000-19x18x58-40
Mechanical Specifications
Laser HeadDiameter (mm): 19x18x58mm
Housing Material: Brass with gold-plating
Wavelength (nm): 571±2nm
Output Power (mW) at 25℃ ： ≥800mW
Power Stability at const. Temperature(2) : +/- 1%, +/- 3%
Output Power Mode : CW
Laser Class: 3B

Beam Divergence (mrad)：≤ 40mrad
Beam Diameter at Output Window (mm): 0.5mm
Beam Mode Longitude:Multi
Beam Mode Transverse:TEM1o
Polarization Ratio (Linear):100:1
Power Type: ACC
LD Voltage (DC, V): 1.8-2.3v
LD Operating Current (mA) at 2V: ≤1.2A

Thermistor Constants
A = 2.231e-3 B = 4.694e-5
C = 0.884e-6
Thermistor Resistance
6.6KΩ@35℃ 8.2KΩ@30℃ 10.0KΩ@25℃ 12.3KΩ@20℃ 16.4KΩ@15℃ 18.5KΩ@10℃

For datasheet, please contact with Lasence sales.
