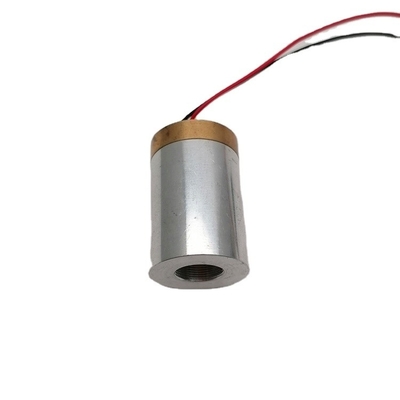

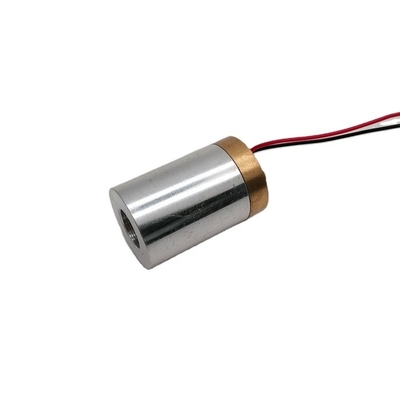

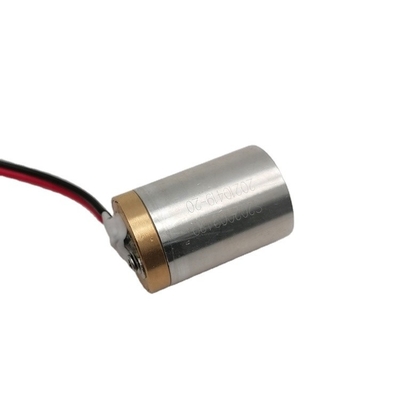

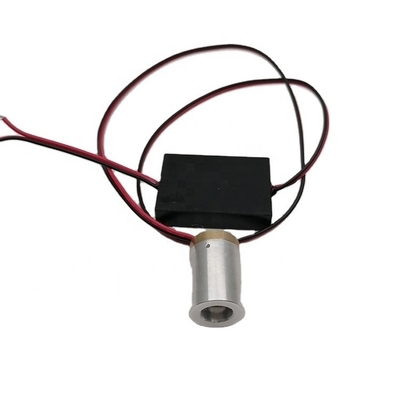

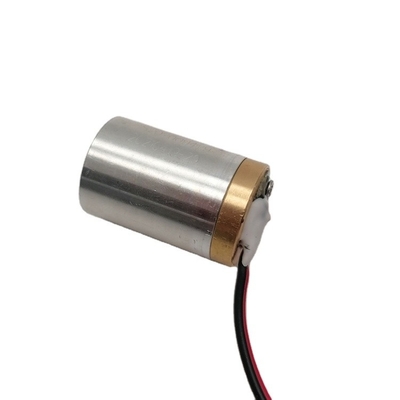

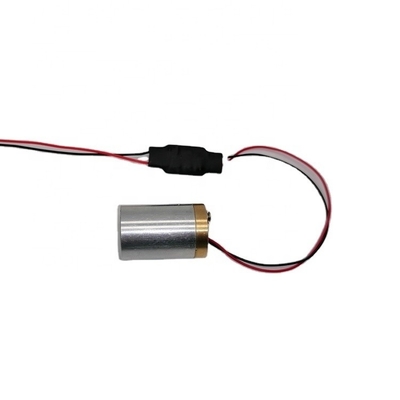

2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window

2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window

Large Image :  2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window

Product Details:
Place of Origin: Shandong, China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $200.00/pieces 1-9 pieces
Contact Now

2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Focus Adjustable, Little Beam Spot
Showroom Location: Germany Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG): 0.1 KG Wavelength: 561nm±2nm
Output Power: 2-9mW Output Power Mode: Pulse
Beam Divergence:: ≤1.5mrad Beam Diameter At Output Window: ≤5mm
Beam Mode: TEMoo Power Type: PWM/50% Duty Cycle
Operating Voltage: 2.6-3V Operating Current: ≤50mA
Module Size: 8x25mm

Product Overview

561nm DPSS dot laser module

This small size yellow 561nm laser module can used in science testing, laser pointers and other pointing purpose applications.
FEATURES AT A GLANCE
· DPSS 561nm yellow dot laser module
· Fast Rise Time
· High Reliability
-TEMoo

2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 0
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 1
yellow
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 2
dot
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 3
561nm
PRODUCT SPECIFICATIONS
No
Parameters
1
Wavelength
561nm±2nm
2
Output Power
2-9mW
3
Output Mode
Pulsed
4
Beam Divergence
≤1.5mrad
5
Beam Size at output window
≤5mm
6
Operating Voltage
2.5-3V
7
Operating Current
≤500mA
8
Module Size
8x25mm
PRODUCT CONFIGURATION
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 4
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 5
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 6
SIMILAR PRODUCTS
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 7
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 8
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 9
Why Choose Us

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products.
The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years.
Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module,as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications ofbiomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia.
Just tell us what you want to achieve, and Lasence will help you get there.

2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 10
Workshop
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 11
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 12
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 13
Exhibition
2-9mW Output Power 561nm Yellow Laser Module with ≤5mm Beam Diameter at Output Window 14
