Special Wavelength 20x55mm 545nm High Power Green Laser Head Coupled with 200μm Fiber

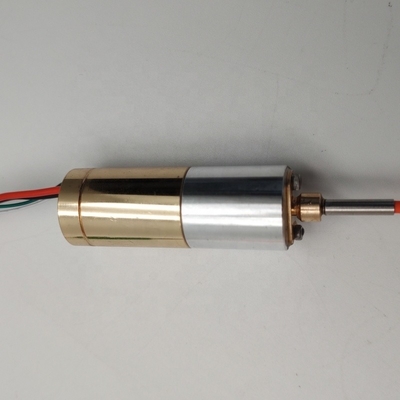

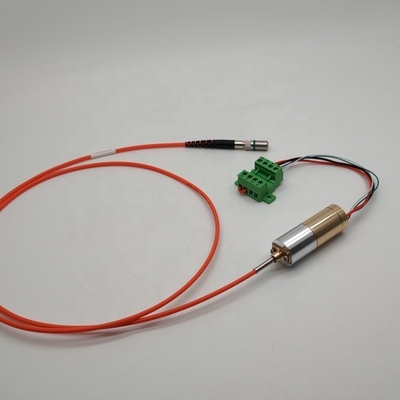

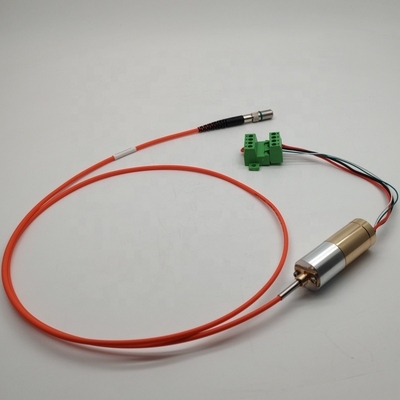

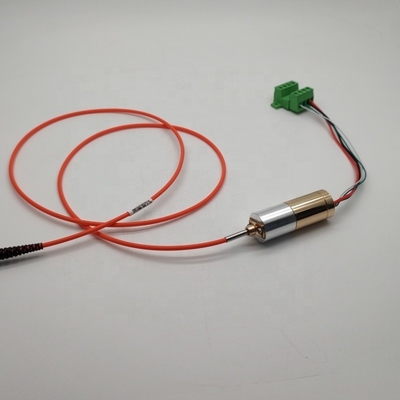

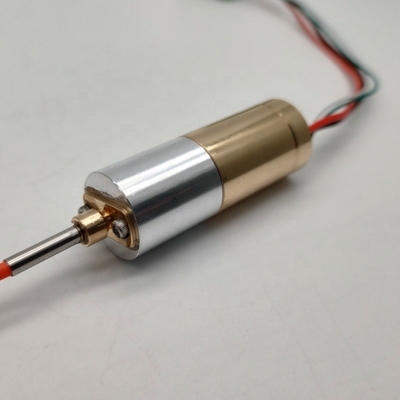

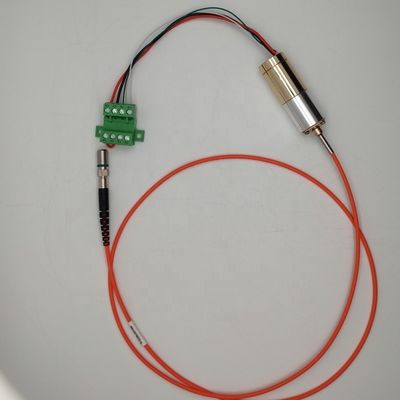

Large Image : Special Wavelength 20x55mm 545nm High Power Green Laser Head Coupled with 200μm Fiber

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$3,000.00/pieces >=1 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

Special Wavelength 20x55mm 545nm High Power Green Laser Head Coupled with 200μm Fiber

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany, Colombia	Applicable Industries:	Industry
Weight (KG):	0.2 KG	Wavelength:	545nm
Output Power:	1.5W After Fiber	Output Power Mode:	CW
Fiber Type:	200μm	Fiber Numerical Aperture::	0.22
Fiber Length:	1m Or Customized	Fiber Terminal:	ACC
LD Voltage:	1.8-2.3V	Operating Temperature:	25-30℃
RoHS Compliance Declaration:	Yes

Products Description

1.5W industrial DPSS high power laser with fiber output

Features：

· DPSS Laser

· 1500mW after fiber@545nm

20x55mm

Any others can be customized

· Fast Rise Time

· High Reliability

Please contact us for detailed datasheet.

Dimensions (Unit: mm)

Specifications

Laser Head Diameter: 20mm

Length (mm): ≤55

Weight (g): ≤200

Housing Material Brass with gold-plating

Wavelength (nm): 545nm±2nm
Output Power after fiber (mW) : ≥1500

Power Stability at const. Temperature: +/- 2% OR +/- 5%

Output Power Mode:CW

Laser Class:4
Fiber Type: 200um with 3mm loose tube
Fiber Numerical Aperture: 0.22
Fiber Length (m): 1
Fiber Termination: SMA905(2) Power Type:ACC LD Voltage (DC, V) ：2.6V LD Operating Current (mA) at 2.6V：≤10,000 Wire Length
(mm)：200 (+/-50) Wire Type：20AWG / 28AWG Lifetime (hours)≥5,000 RoHS Compliance Declaration ：Yes
