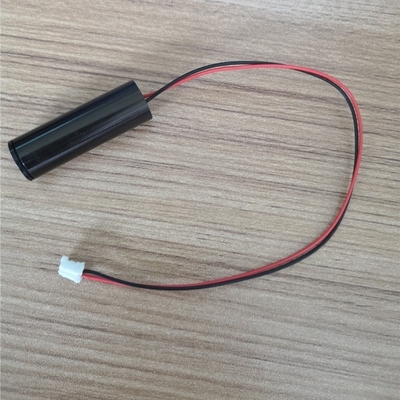

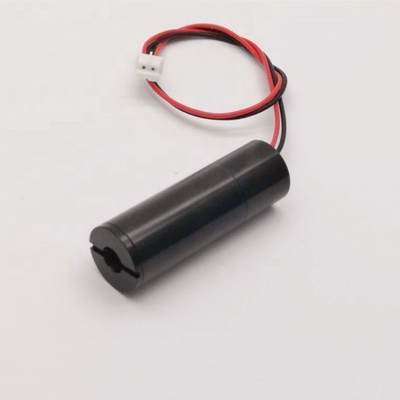

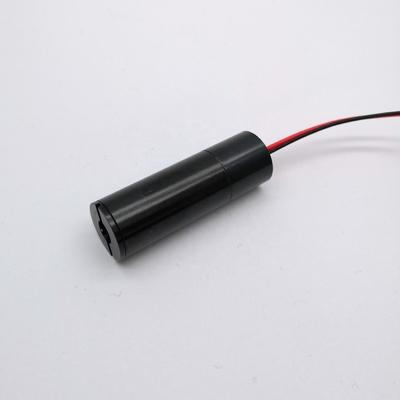

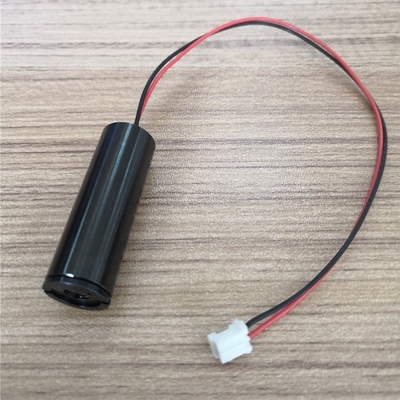

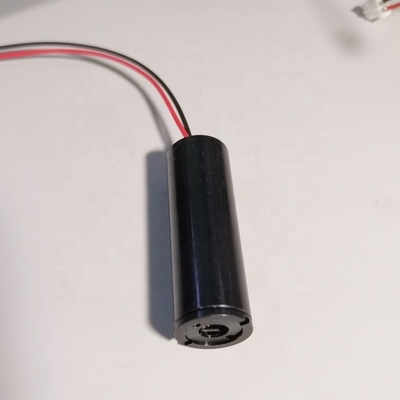

545nm Wavelength Laser Module for Precise Line Positioning in Industrial Environments

Large Image : 545nm Wavelength Laser Module for Precise Line Positioning in Industrial Environments

Product Details:

Place of Origin:	China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$100.00/pieces 1-199 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

545nm Wavelength Laser Module for Precise Line Positioning in Industrial Environments

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.02 KG	Wavelength:	545nm
Output Power:	20mW	Output Power Mode:	CW
Fan Angle:	12-18mrad	Linewidth At 600mm:	< 0.7mm
Focus Distance:	600mm	Power Type:	APC
Voltage:	2.8-4.5V	Operating Temperature:	15 To 50℃
RoHS Compliance Declaration:	Yes	After Warranty Service:	Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location:	Germany	Port:	Qingdao,China

Features：

· Gaussian Line

· Wide Temperature Range

· Fast Rise Time

· High Reliability

Dimensions (Unit: mm)

Specifications

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
