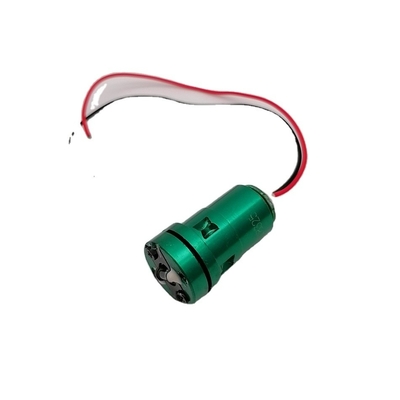

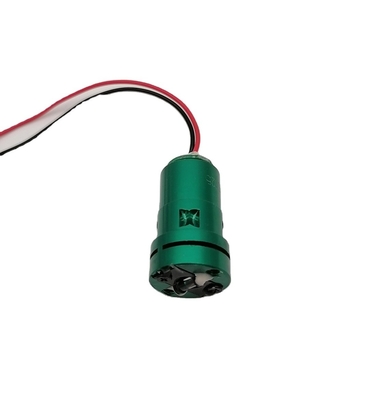

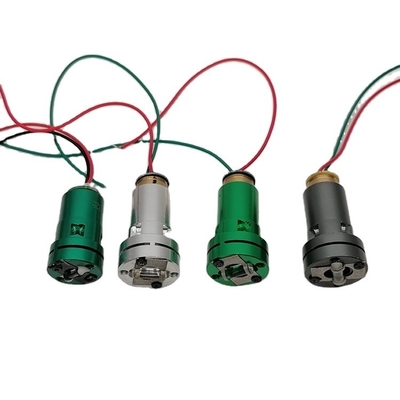

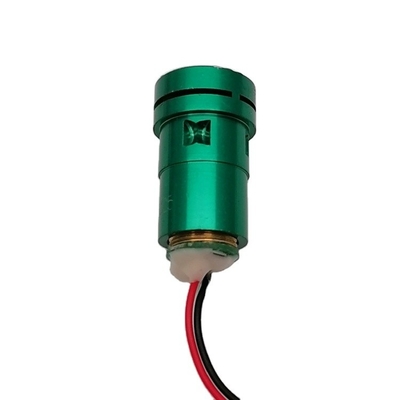

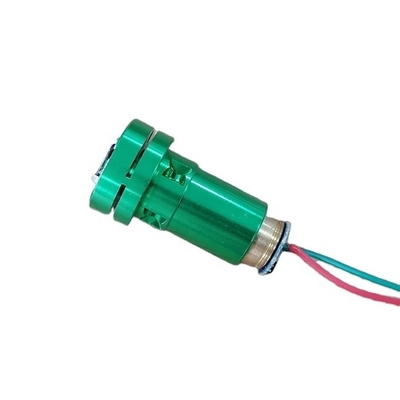

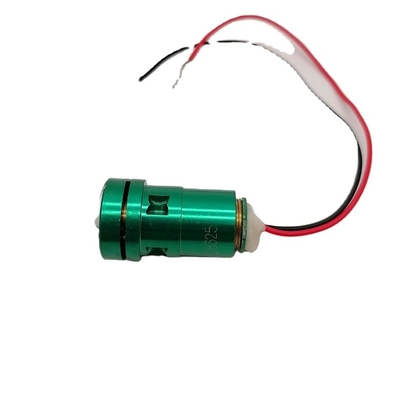

Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type

Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type

Large Image :  Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $25.00/pieces 1-99 pieces
Packaging Details: ESD Plastic bag, outside with carton package
Contact Now

Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Building Material Shops, Food & Beverage Factory, Construction Works , Industry
Weight (KG): 0.02 KG Wavelength: 532nm ±2nm
Output Power For Dot: 5-18mW Output Power Mode: CW
Fan Angle: ~120° Linewidth At 7m: 4mm
Line Curvature (mm) At 10m: ±0.5mm Power Type: ACC
Voltage: 2.6-3.0V Current: 380mA
Operating Temperature: -10 To 50℃

Products Description
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type 0



Features：
· Gaussian Line
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Dimensions (Unit: mm)
Wavelength
532nm±2nm
Output Power for dot
7-18mW
Operating Case Temperature
-10 to 50℃
Power Stability
±33%
Line Width at 7m
Max 4mm
Woking Volatage
ACC-CW
Working Current
≤ 450mA
line straigtness at 10m
Max ±0.5mm
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type 1
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type 2
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type 3
Company Profile
Affordable 530nm 545nm Dot or Line Laser Module with 0.02 KG Weight and ACC Power Type 4
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
