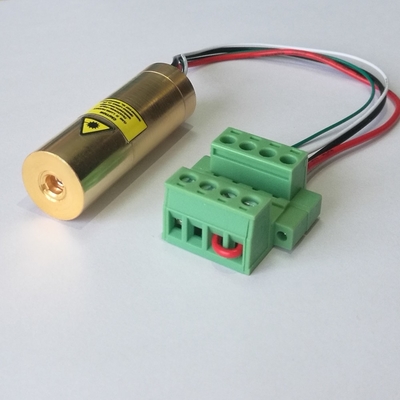

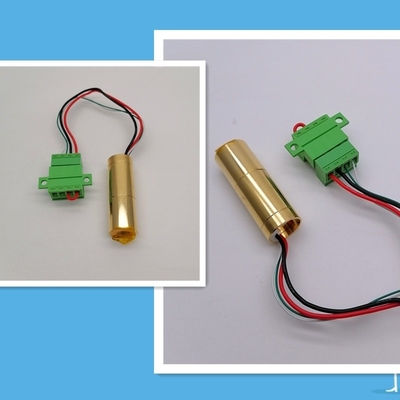

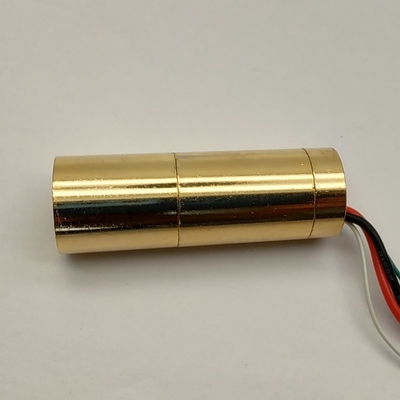

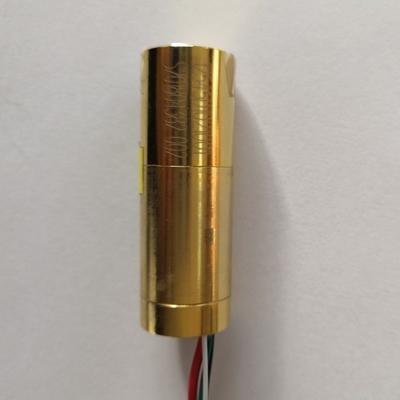

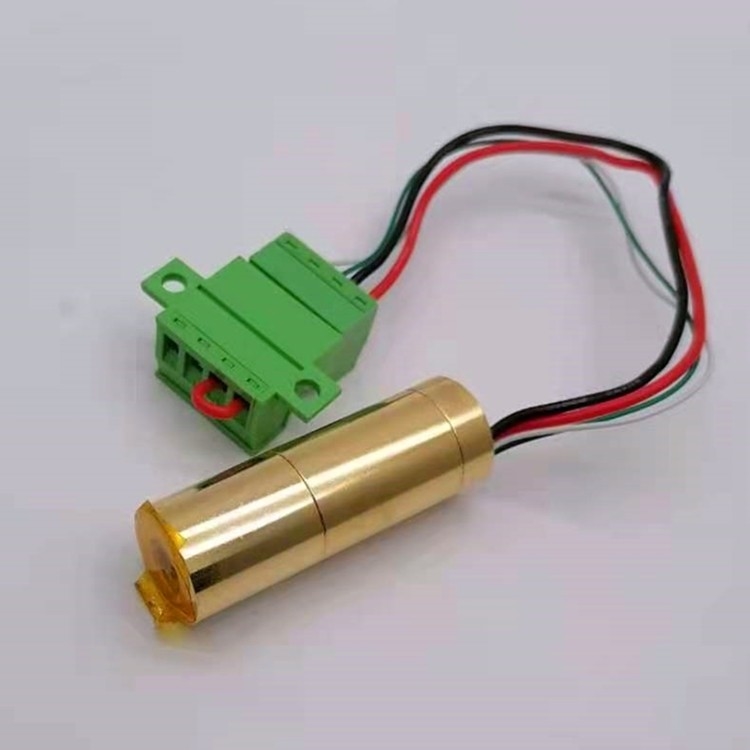

561nm DPSS Solid Laser for Advertising Company Beam Divergence ≤ 50mrad Best Choice

Large Image : 561nm DPSS Solid Laser for Advertising Company Beam Divergence ≤ 50mrad Best Choice

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$1,000.00/pieces 1-99 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

561nm DPSS Solid Laser for Advertising Company Beam Divergence ≤ 50mrad Best Choice

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Other, Advertising Company, Industry
Weight (KG):	0.2 KG	Wavelength:	561nm±2nm
Output Power:	50mW	Output Power Mode:	CW
Beam Divergence:	≤ 50mrad	Beam Diameter At Output Window:	0.5mm
Beam Mode Transverse:	Multi	Power Type:	ACC
LD Voltage And Current:	2V , 2500mA	Operating Temperature:	25℃-30℃
RoHS Compliance Declaration:	Yes	Port:	Qingdao,China

Products Description

Features：

· DPSS Laser

·50mW@561nm

· Fast Rise Time

· High Reliability

Specifications

561nm Yellow Laser Module for medical, biological detection, science etc.

Specifications
Model Number :Y561D050-18x55-30
Mechanical Specifications
Laser HeadDiameter (mm): 18x55mm
Housing Material: Brass with gold-plating
Wavelength (nm): 561±2nm
Output Power (mW) at 25℃ at 2.5A： ≥50mW
Power Stability at const. Temperature(2) : +/- 5%, +/- 10%
Output Power Mode:CW
Laser Class: 3B

Beam Divergence (mrad)：≤ 40mrad
Beam Diameter at Output Window (mm): 0.5mm
Beam Mode Longitude:Multi
Beam Mode Transverse:TEMno
Polarization Ratio (Linear):100:1
Power Type: ACC
LD Voltage (DC, V): 1.8-2.3v
LD Operating Current (mA) at 2V: ≤2,500
Thermistor Constants
A = 2.231e-3 B = 4.694e-5
C = 0.884e-6
Thermistor Resistance
6.6KΩ@35℃ 8.2KΩ@30℃ 10.0KΩ@25℃ 12.3KΩ@20℃ 16.4KΩ@15℃ 18.5KΩ@10℃

For datasheet, please contact with Lasence sales.
