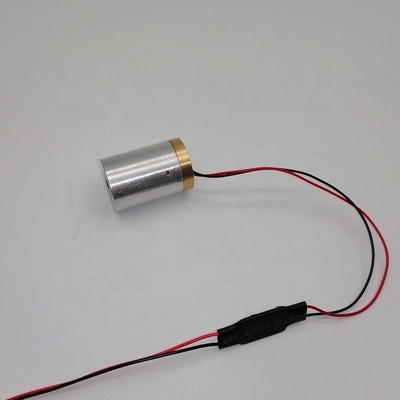

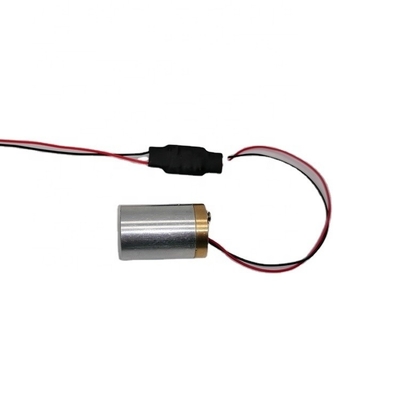

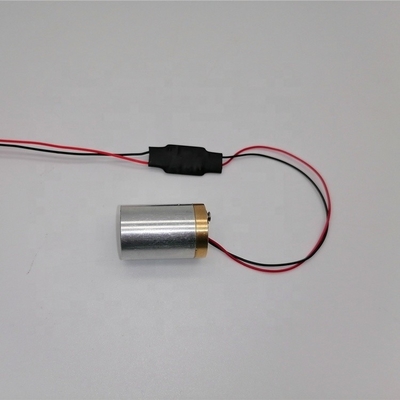

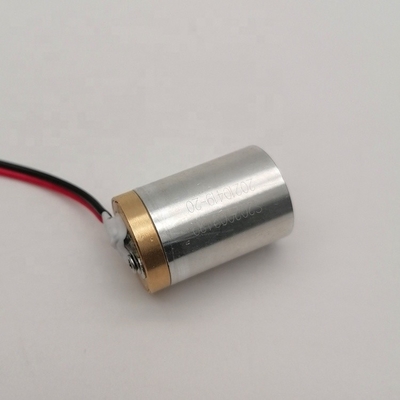

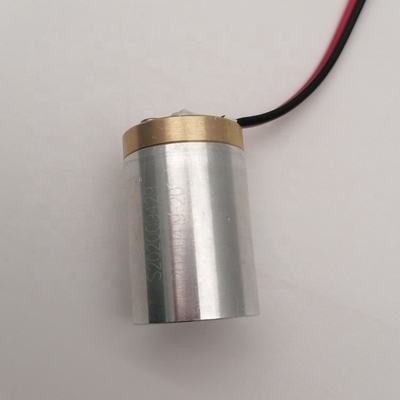

≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence

≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence

Large Image :  ≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $500.00/pieces >=2 pieces
Packaging Details: ESD Plastic bag, outside with carton package
Contact Now

≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Building Material Shops, Food & Beverage Factory, Construction Works , Industry
Weight (KG): 0.02 KG Wavelength: 560nm ±2nm
Output Power For Dot: ≥ 10mW Output Power Mode: CW
Beam Divergence: ≤1.5mrad Beam Mode: Near TEMoo
Power Type: APC Voltage: 3.0V
Driver Current At 5V: ≤650mA Module Size: 12x31.5mm
Operating Temperature: 10 To 50℃ Port: Qingdao,China

Video Decription
Recommend By Seller
Products Description
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 0



Features：
· DPSS 561nm Yellow dot laser module
·Yellow laser
· Fast rise time
· High reliability
·Wide temperature range
Dimensions (Unit: mm)
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 1
Wavelength
560nm±2nm
Output Power
≥10 mW
Operating Case Temperature
10 to 50℃
Power Stability
±10% at constant temperature
Beam Divergence
Max 1.5mrad
Dimentions
φ12x31.5mm
Beam
dot laser
Beam Roudness
70% to 100%
Woking Volatage
3V
Working Current
≤ 650mA
Rise Time
< 2 sec.
Lifetime
5000 hours
PCB type
ACC
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 2
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 3
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 4
Why Choose Us
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have 30+ engineers and have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 5
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 6
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 7
System(Controllable for each step)
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 8
Payment & Delivery
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 9

1. Payment:

1)Payment can be arranged when order is ready before shipment.
2) TT or online via Alibaba platform.
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 10

2. Package

1) each module in a seperate antistatic bag before packing in carton.
2) each laser is in a safe box before packing in carton.
3)inner foam protection
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 11

3. Shipping

Shipping by sea to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
After-sales Service
Lasence Laser modules and Lasers are1 year warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to
customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under
warranty or man-made damage, the freight charges by the customer.

Kindly be noted the price on the website is just for your reference, please contact us directly for an accurate offer. Mailbox: lara.sui@lasence.com or
≤650mA driver current at 5V DPSS 3V 10-20mw yellow 561nm dot laser module by Lasence 12
