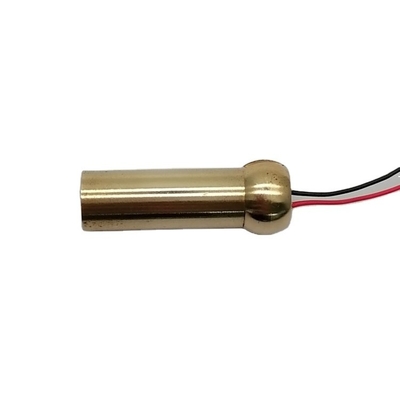

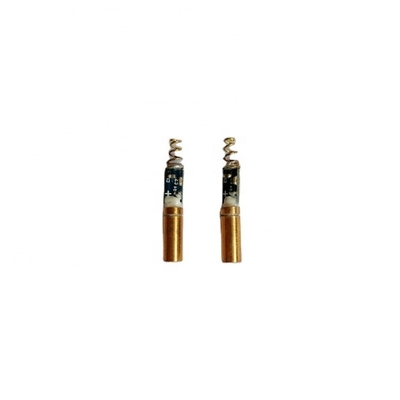

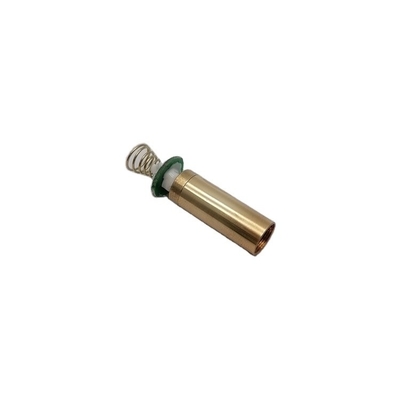

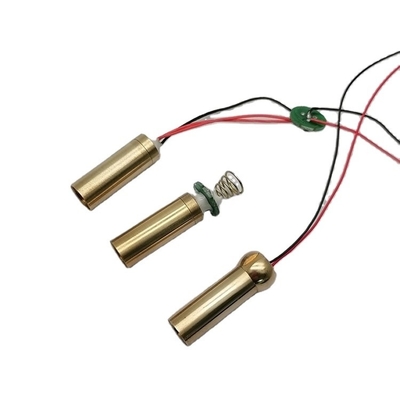

3.7mm Mini Laser Module for Construction Works 532nm/545nm Wide Temperature Beam Mode

Large Image : 3.7mm Mini Laser Module for Construction Works 532nm/545nm Wide Temperature Beam Mode

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Lasence

Payment & Shipping Terms:

Price:	$80.00/pieces 1-99 pieces

Contact Now

3.7mm Mini Laser Module for Construction Works 532nm/545nm Wide Temperature Beam Mode

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG):	0.01 KG	Wavelength:	545nm
Output Power:	3mW	Output Power Mode:	PWM/TTL
Beam Divergence:	Max 2.5mrad	Beam Size At 10m:	<20mm
Beam Mode Transverse:	Near TEM00	Power Type:	ACC-TTL-18% Or 28 % Or 38%
Voltage:	2.7-4.2V	Operating Temperature:	-30 To 60℃
RoHS Compliance Declaration:	Yes

Products Description

Features：

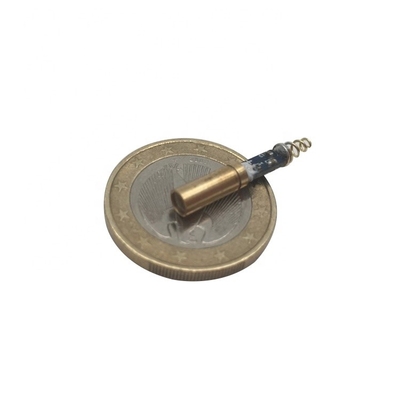

· Small Size: Dia3.7x10mm

· Wide Temperature Range

· Reverse Voltage Protection

· Fast Rise Time

· High Reliability

Dimensions (Unit: mm)

Specifications

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
