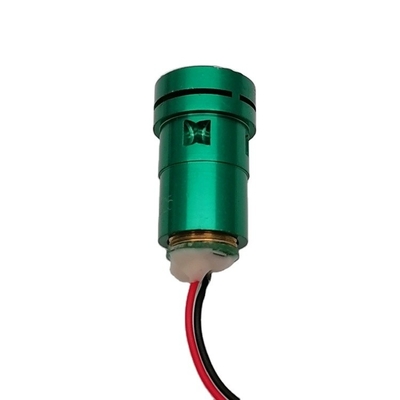

Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage

Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage

Large Image :  Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage

Product Details:
Place of Origin: China
Brand Name: Lasence
Payment & Shipping Terms:
Price: $115.00/pieces 1-99 pieces
Contact Now

Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service, Online Support Spare Parts Type: Laser Module
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Key Selling Points: High Stability, Wide Temperature Range
Showroom Location: Germany Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Weight (KG): 0.02 KG Wavelength: 532nm Or 545nm
Output Power: 1-20mW Optional Output Power Mode: CW
Fan Angle:: 10 / 15 / 20 / 30 / 45 / 60 / 75 / 90 / 120°- Optional Linewidth At 10m: < 4.5mm
Line Curvature (mm) At 10m: ±0.5 Power Type: APC
Voltage: 2.8-5.2V Operating Temperature: -30 To 50℃
RoHS Compliance Declaration: Yes

Products Description
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 0






Features
· Gaussian Line
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Dimensions (Unit: mm)
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 1
Specifications
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 2
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 3
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 4
Company Profile
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 5
Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 6
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 7
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 8
Certifications
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 9
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 10
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 11
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 12
Exhibition
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 13
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 14
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 15
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 16
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 17
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 18
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 19
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 20
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 21
Working Environment
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 22
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 23
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 24
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 25
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 26
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 27
Payment & Delivery
Green Line Generator Laser Module with ±0.5mm Line Curvature at 10m and 2.8-5.2V Voltage 28
