0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs

Large Image : 0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs

Product Details:

Place of Origin:	China
Brand Name:	Lasence

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$20.00/pieces 10-499 pieces
Packaging Details:	ESD Plastic bag, outside with carton package

Contact Now

0.02 KG CW Output Power Mode Green Line Visible Laser Module for High Precision Needs

Description

Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Maintenance And Repair Service, Online Support	Spare Parts Type:	Laser Module
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Key Selling Points:	High Stability, Wide Temperature Range
Showroom Location:	Germany	Applicable Industries:	Industry
Weight (KG):	0.02 KG	Wavelength:	545nm/530nm
Output Power:	8mW	Output Power Mode:	CW
Fan Angle:	120	Linewidth At 7m:	Max 3.5 Mm
Line Curvature (mm) At 10m:	±0.5	Power Type:	APC
Voltage:	2.6-3.0V	Current:	220mA
Operating Temperature:	-10 To 40℃	Port:	Qingdao,China

Hot Sale Line Laser Modules

Lasence also develop custom lasers according to your needs. Tell us what you need, we can help you to achieve.

Products Description

Features：

· Gaussian Line

530nm or 545nm or 555nm

555 is most visible

· Wide Temperature Range

· Fast Rise Time

· High Reliability

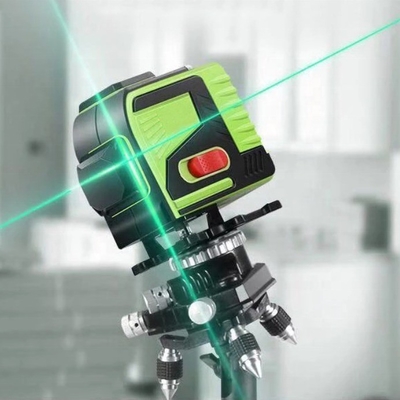

These line laser modules are used for laser level or similar application

Dimensions (Unit: mm)

Company Profile

545nm line laser modules

The visible green laser module is used for laser level and similar application.

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
